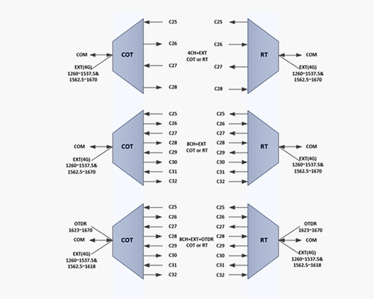

The DWDM ABS module of HYC is a wavelength division multiplexing technology based on TFF (thin film filter), which has a variety of package sizes and wavelength options; DWDM has 100 GHz, 200 GHz channel spacing, suitable for long-distance, large-capacity trunk network, or ultra-large capacity MAN core nodes; Under the current 5G environment, HYC develop a series of central office terminal (COT) and remote terminal (RT) products base on the market demand. It can increase the 4G extension (EXT) port, OTDR port and etc. according to customer requirements.
Quantity:

Excellent Performance Parameters (WDM systems with low loss and high isolation)

5G DWDM COT&RT LGX Module_03.jpg

Lower Insertion Loss

Lower insertion loss makes DWDM ABS module have lower signal attenuation in operation, thus reducing the power requirement of signal transmitter.

High Isolation

The higher isolation value enables sufficient signal isolation during multi-signal transmission in the DWDM ABS module,effectively preventing crosstalk between signals and causing distortion of the transmission signal.

5G DWDM COT&RT LGX Module_07.jpg
5G DWDM COT&RT LGX Module_11.jpg

Mature Production Process

The 5G DWDM COT&RT ABS module of HYC has mature production technology, stable and reliable performance,supports the work in the harsh environment of - 40 ~+85 ℃,and ensures the stable transmission of signals.

Compliance with international standards

The 5G DWDM COT&RT ABS module of HYC conforms to RoHS, Satisfies TelcordiaGR-1209 and GR-1221.

5G DWDM COT&RT LGX Module_26.jpg
  • RoHS
  • TelcordiaGR-1209-CORE
  • GR-1221-CORE

Customizable

The ABS module type of HYC has a variety of package sizes and wavelength options. It can increase the 4G extension port, OTDR port, monitor port and etc. according to customer requirements.


​​Package sizes is optional


​​ ructure is optional;Customizable

Specification

ItemsUnitCOT or RT
ChannelsCH4+Ext6+Ext8+Ext
Operating wavelengthnm1260~1670
Central wavelengthCH100G ITU C26~C41
Transmission bandwidthnmITU±0.11
EXT bandwidthnm1260~1537.5&1562.5~1670
Transmission band insertion lossdBDWDM:≤2.0  Ext:≤0.6DWDM:≤2.5  Ext:≤0.6DWDM:≤3.0  Ext:≤0.6
Transmission Adjacent IsolationdB≥30
Transmission Non-adjacent isolationdB≥45
EXT IsolationdB≥15
Return lossdB≥45
DirectivitydB≥50
RippledB≤0.5

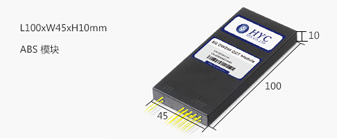

Package dimensionmmL100xW45xH10、L80xW60xH12
Operating temperature-40~+85
Connector typeSC/UPC(or customize)
