The 5G WDM LGX module of HYC is a wavelength division multiplexing technology based on TFF (thin film filter), It uses zero dispersion band, 50、100GHz channel spacing, which has a variety of package sizes and wavelength options; Under the current 5G environment, HYC develop a series of central office terminal (COT) and remote terminal (RT) products base on the market demand. It can increase the 4G extension (EXT) port, OTDR port and etc. according to customer requirements.
Quantity:

Excellent Performance Parameters (WDM systems with low loss and high isolation)

5G WDM LGX Module_03.jpg

Lower Insertion Loss

Lower insertion loss makes 5G WDM LGX module have lower signal attenuation in operation, thus reducing the power requirement of signal transmitter.

High Isolation

The higher isolation value enables sufficient signal isolation during multi-signal transmission in the 5G WDM LGX module,effectively preventing crosstalk between signals and causing distortion of the transmission signal.

5G WDM LGX Module_07.jpg
5G WDM LGX Module_11.jpg

Mature Production Process

The 5G WDM LGX module of HYC has mature production technology, stable and reliable performance,supports the work in the harsh environment of - 40 ~+85 ℃,and ensures the stable transmission of signals.

50、100GHz channel spacing、O-band Zero dispersion wavelength

5G WDM LGX module uses zero dispersion wavelength to make optical signal more flat and stable in the transmission process and avoid signal crosstalk; 50、100GHz channel interval enables customers to have more channel choices and increase the transmission capacity of zero dispersion wavelength.


Compliance with international standards

The 5G WDM LGX module of HYC conforms to RoHS, Satisfies TelcordiaGR-1209 and GR-1221.

5G WDM LGX Module_26.jpg
  • RoHS
  • TelcordiaGR-1209-CORE
  • GR-1221-CORE

Easy to Install、Clear Identification

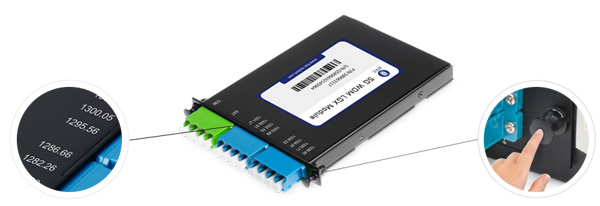

The fixing mode of LGX module box and rack is rivet type fixing buckle, which is made of Nylon material approved by UL94V-2. It is easy to install and disassemble. Each LGX module panel working port has a wavelength mark printed by laser, which is convenient for users to identify.


wavelength mark printed by laser rivet type fixing buckle

Customizable

The ABS module type of HYC has a variety of package sizes and wavelength options. It can increase the 4G extension port, OTDR port, monitor port and etc. according to customer requirements.

5G WDM LGX Module_26.jpg

8CH+EXT WDM COT LGX

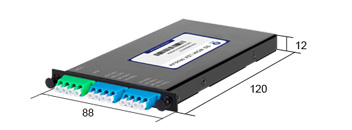

(12pcs LGX mountable on 19''1U rack)

5G WDM LGX Module_31.jpg

16CH+EXT WDM COT LGX
(3pcs LGX mountable on 19''1U rack)

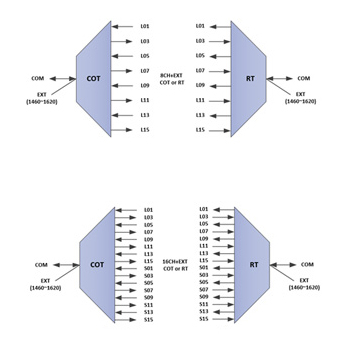

Optical path structure
is optional;Customizable

Specification

ItemsUnitCOT or RT
ChannelsCH4+Ext8+Ext16+Ext
Operating wavelengthnm1260~1360&1400~1620
Central wavelengthCHcustomize
Channel spacingnm50/100
EXT bandwidthnm1400~1620
Transmission band insertion lossdBWDM:≤1.8  EXT:≤0.9WDM:≤2.8  EXT:≤0.9WDM:≤5.0  EXT:≤0.9
Transmission Adjacent IsolationdB≥25
Transmission Non-adjacent isolationdB≥40
EXT IsolationdB≥30
Return lossdB≥45
DirectivitydB≥50
RippledB≤0.5
Package dimensionmmL180xW100xH29      MINI:L120xW88xH12
Operating temperature-40~+85
Connector typeCOM&EXT: LC/APC   Other: LC/UPC(or customize)
