Model NO.
Armored Patch cord
Delivery:
FOB
Armored patch cord, which is one of the passive products for optical network construction, is to add optical fiber connectors at both ends of an armored cable to realize the quick connection between optical network equipment and equipment, between equipment and patch cord. It is easy to operate, convenient and fast. HYC can provide all kinds of armored patch cord products. The transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization. It is widely used in optical network scenarios such as defense communication, outdoor emergency, and FTTX etc.
Quantity:

High tensile resistance & anti-pressure

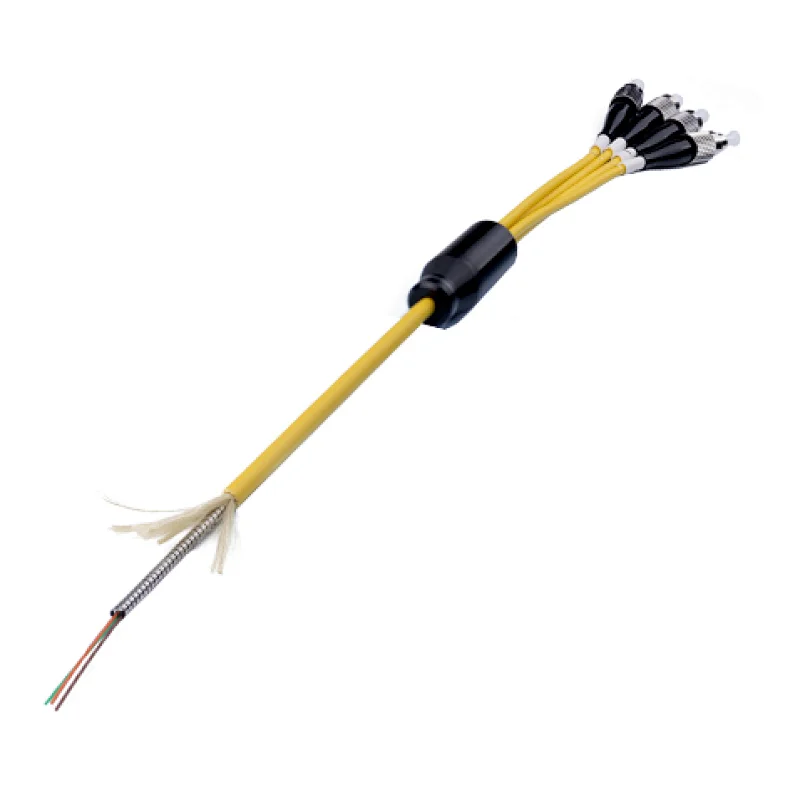

Armored patch cords are made of SUS-304 stainless steel tape of various specifications. After precision processing, the fiber is completely protected by the armor.

Armored Patch cord

High quality, 100% Tested

The armored patch cords provided by HYC are 100% tested, which meets product standards and meets customer needs.

  • Armored Patch cord_03.jpg

    Il and return loss tested

  • Armored Patch cord_07.jpg

    Connector 3D tested

  • Armored Patch cord_07-04.jpg

    Ferrule end face inspected

High quality ferrules

Armored patch cords selected ceramic ferrule, professional grinding technology, so that the end face of the optical fiber can be precisely connected; Low Insertion Loss≤0.15dB, Stable transmission and efficient connection.

Armored Patch cord

Stable parameter performance

The armored patch cord provided by HYC meets the operating environment of-40~85 °C, More than 1,000 mating durability tests on average, stable performance and reliable quality.

Armored Patch cord

Multiple styles and can be customized

HYC provides a variety of armored patch cords, and can also be customized.

MoldcoresFerrule typeHousing colorCable diameterInput connectorOutput connector
SMUPCBeigeLCLC
Single coreyellow0.9mmSCSC
Double coreGreen2.0mmFCFC
MMAPCRose red3.0mmSTST
Quad coreAqua4.0mmMUMU
.................

Examples:

  • Armored Patch cord_19.jpg

    SM 0.9mm Simplex
    ST/PC-FC/PC

  • Armored Patch cord_19-08.jpg

    SM 3.0mm Duplex
    FC/PC-LC/PC

  • Armored Patch cord_19-09.jpg

    SM 3.0mm Simplex
    LC/APC-SC/APC

  • Armored Patch cord_19-09.jpg

    SM 3.0mm Quad
    FC/PC-SC/PC

Compliance with international standards

The armored patch cords provided by HYC can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC61754, IEC 61753-1, IEC61300-3-4 and other standards.

Armored Patch cord_26.jpg
  • GR 326 or IEC 61300-2
  • RoHS
  • IEC 61754
  • IEC 61753-1

Specification

ItemsRandom Mating according to IEC 61300-3-34Against Master Connector according to IEC 61300-3-4
Grade AGrade BGrade CAverageMax
AverageMax (97%)AverageMax (97%)AverageMax (97%)
Insertion Loss≤0.08dB≤0.15dB≤0.12dB≤0.25dB≤0.25dB≤0.5dB≤0.25dB≤0.30dB
Return Loss≥50dB(PC),≥50dB(UPC);≥60dB(APC)≥30dB(PC)
Durability500 times
Operation temperature-40℃~+85℃
Fiber TypeOS1/ OS2OM1/OM2/OM3/OM4/OM5
