Model NO.
AWG CWDM4 Module
Delivery:
FOB
The AWG CWDM4 module of HYC is based on silicon chip technology. It has compact, easy-to-assemble structure and good reliability. It can replace TFF (thin film filter) type CWDM. It is widely used in 40G and 100G high-speed active optical modules for optical signal Mux and Demux, such as QSFP+, QSFP28, etc.
Quantity:

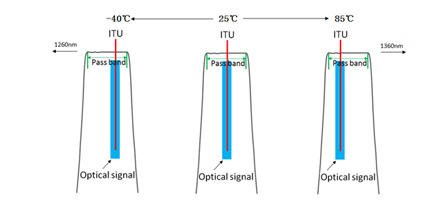

Adequate Working Bandwidth (to effectively meet the high and low temperature wavelength drift problem)

Each channel pass band of AWG CWDM4 has sufficient working bandwidth, and can maintain the optimal insertion loss index under the influence of high and low temperature. Optical signal can not escape the working bandwidth of AWG CWDM4.

AWG CWDM4 Module_03.jpg

When the temperature is lowered, the AWG CWDM4 Pass band will shift to the short wave direction.When the temperature rises, the AWG CWDM4 Pass band shifts toward the long wave direction.

Good Uniformity

Because of the planar waveguide technology, AWG CWDM4 has very good channel uniformity, and the insertion loss difference between channels is small, so there is no need to compensate the power of individual channels.

AWG CWDM4 Module_14.jpg

Mux

AWG CWDM4 Module_14.jpg

Demux

Compact Design (perfect combination of compact size and microbend optical fibers)

AWG CWDM4 device can be installed in very narrow space. Its main size can be compressed to within 15mm long,2mm wide,and 2mm high. Because of Corning Clear Curve ZBL fiber being used, the bending radius of the fiber reaches 5mm, almost zero bending loss, high fidelity and high transmission rate.

AWG CWDM4 Module_14.jpg
AWG CWDM4 Module_14.jpg

Compliance with International Standards

The AWG CWDM4 module of HYC conforms to RoHS and Telcordia GR-1209-CORE and GR-1221-CORE.

AWG CWDM4 Module_26.jpg
  • RoHS
  • TelcordiaGR-1209
  • GR-1221

Specification

ParametersUnitMuxDemux
ChannelsCH4
Channels spacenm20
Center wavelengthnm1271、1291、1311 、1331
Center wavelength accuracy @1dBnm±1
Bandwidth @1dBnm≥10≥12
Bandwidth @3dBnm≥15
Insertion loss @CWLdB≤3.5≤2.5
Ripple @ITU±5nmdB≤1.0
Channel uniformitydB≤1.0
Polarization dependent loss @CWLdB≤0.5
Return lossdB≥40
Isolation within Adjacent Channel (Adjacent Crosstalk)@ITU±6.5nmdBNA≥20
Isolation within Non Adjacent Channel (Non-adjacent Crosstalk) @ITU±6.5nmdBNA≥30
Temperature dependent lossdB≤0.5
Channel Pitchum500250
Input/Output SideIdentical sideOpposite side
Chip size mm6.6X2.7、 8.2X3.99.6X2.2、9.8X1.6
Fiber length mCustomer defined
Polish angle°NA41±1
