The breakout patch cord generally consists of four structures: main cable, sub cable, fan-out and connector. The main cable adopts multi-core optical cable, which is convenient for wiring arrangement and difficult to entangle, It is an ideal optical fiber distribution product in high density environment; HYC can provide all kinds of fiber patch cord products. The transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization. It is widely used in optical network scenarios such as LAN, ODF and data center etc.
Quantity:

High quality, 100% Tested

The breakout patch cords provided by HYC are 100% tested, which meets product standards and meets customer needs.

  • MPO/MTP Patch Cord_03.jpg

    Insertion loss and return loss tested

  • MPO/MTP Patch Cord_07.jpg

    Connector 3D tested

  • MPO/MTP Patch Cord_07-04.jpg

    Ferrule end face inspected

High quality ferrules

Breakout patch cords selected high quality ferrule, professional grinding technology, so that the end face of the optical fiber can be precisely connected; Low Insertion Loss≤0.15dB, Stable transmission and efficient connection.

MPO/MTP Patch Cord

Stable parameter performance

The breakout patch cord provided by HYC meets the operating environment of-40~85 °C, More than 1,000 mating durability tests on average, stable performance and reliable quality.

MPO/MTP Patch Cord

Multiple styles and can be customized

HYC provides a variety of MPO/MTP Loopback Patch Cord, and can also be customized.

MoldcoresFerrule typeHousing colorInput connectorOutput connector
SM4 coreUPCBeigeLCLC
8 coreyellowSCST
12 coreGreenFCFC
MM16 coreAPCRose redSTST
24 coreAquaMUMU
......................

Examples:

  • MPO/MTP Patch Cord_19.jpg

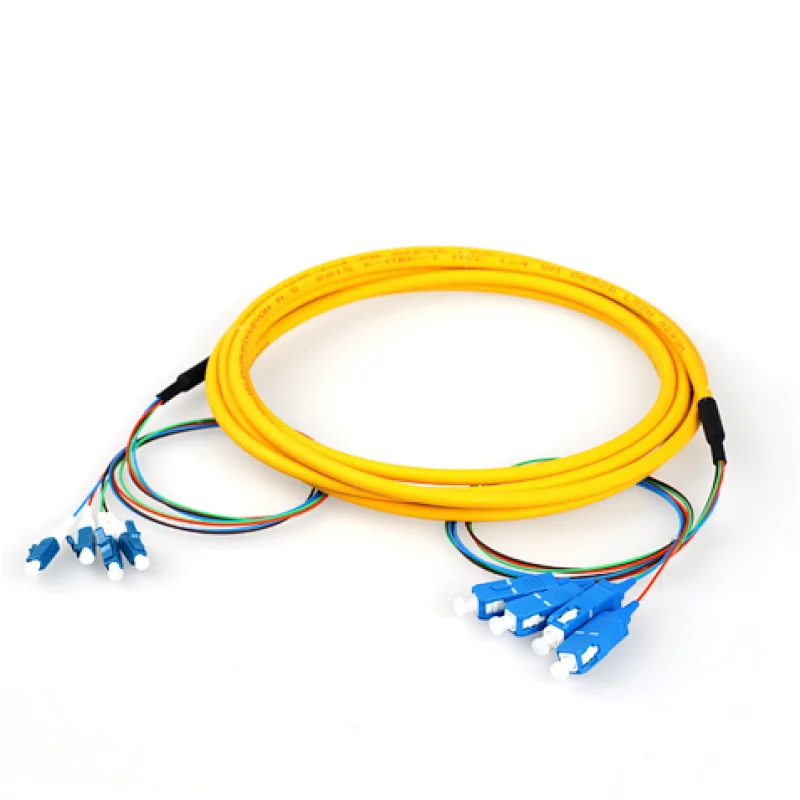

    LC/PC-SC/APC 4 core breakout patch cord

  • MPO/MTP Patch Cord_19-08.jpg

    LC/PC-SC/APC 12 core breakout patch cord

  • MPO/MTP Patch Cord_19-09.jpg

    LC/PC-SC/PC 24 core breakout patch cord

Applications

Example: Breakout patch cord is suitable for ODF, data center and other scenarios.

  • MPO/MTP Patch Cord_28.jpg

    Fiber distribution

  • MPO/MTP Patch Cord_28-11.jpg

    Same rate interconnection in data center

Compliance with international standards

The breakout patch cords provided by HYC can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC61754, IEC 61753-1, IEC61300-3-4 and other standards.

MPO/MTP Patch Cord_26.jpg
  • GR 326 or IEC 61300-2
  • RoHS
  • IEC 61754
  • IEC 61753-1

Specification

ItemsRandom Mating according to IEC 61300-3-34Against Master Connector according to IEC 61300-3-4
Grade AGrade BGrade CAverageMax
AverageMax (97%)AverageMax (97%)AverageMax (97%)
Insertion Loss≤0.08dB≤0.15dB≤0.12dB≤0.25dB≤0.25dB≤0.5dB≤0.25dB≤0.30dB
Return Loss≥50dB(PC),≥50dB(UPC);≥60dB(APC)≥30dB(PC)
Durability500 times
Operation temperature-40℃~+85℃
Fiber TypeOS1/ OS2OM1/OM2/OM3/OM4/OM5
