The CWDM MUX&DEMUX 19" Rack module of HYC is a wavelength division multiplexing technology based on TFF (thin film filter). It has a variety of package sizes and wavelength options; It MUX the optical signals of different wavelengths to a single optical fiber for transmission, and the receiving end uses the DEMUX to decompose the signals in the optical fiber into signals of different wavelengths, HYC is equipped with single or double fiber transmission modes; Because of the advantages of CWDM, such as wide band and low requirement for system equipment, it has occupied an important position in the access layer of MAN.
Quantity:

Excellent Performance Parameters (WDM systems with low loss and high isolation)

CWDM MUX&DEMUX 19 Rack_03.jpg

Lower Insertion Loss

Lower insertion loss makes CWDM 19"rack have lower signal attenuation in operation, thus reducing the power requirement of signal transmitter.

High Isolation

The higher isolation value enables sufficient signal isolation during multi-signal transmission in the CWDM 19"rack,effectively preventing crosstalk between signals and causing distortion of the transmission signal.

CWDM MUX&DEMUX 19 Rack_07.jpg
CWDM MUX&DEMUX 19 Rack_11.jpg

Mature Production Process

The CWDM 19"rack of HYC has mature production technology, stable and reliable performance,supports the work in the harsh environment of - 40 ~+85 ℃,and ensures the stable transmission of signals.

Standard Size

HYC's CWDM MUX & DEMUX 19"rack is a standard 1U product that meets EIA standard cabinet settings.


Compliance with international standards

The CWDM MUX and DEMUX 19"rack of HYC conforms to RoHS, Satisfies TelcordiaGR-1209 and GR-1221.

CWDM MUX&DEMUX 19 Rack_26.jpg
  • RoHS
  • TelcordiaGR-1209-CORE
  • GR-1221-CORE

Easy to install、Clear identification

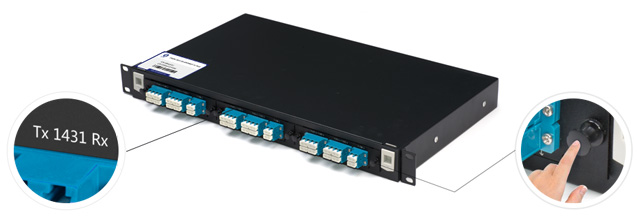

The fixing mode of LGX module box and rack is rivet type fixing buckle, which is made of Nylon material approved by UL94V-2. It is easy to install and disassemble. Each rack panel working port has a wavelength mark printed by laser, which is convenient for users to identify.


wavelength mark printed by laser rivet type fixing buckle

Customizable

HYC's CWDM 19"rack type is available in one-piece and drawer styles, and can be customized for one-way or two-way transmission, upgrade ports, monitoring ports, etc. according to customer requirements.

Rack type is optional

CWDM MUX&DEMUX 19 Rack_26.jpg
CWDM MUX&DEMUX 19 Rack_28.jpg

Optical path structure is optional;Customizable

CWDM MUX&DEMUX 19 Rack_39.jpg

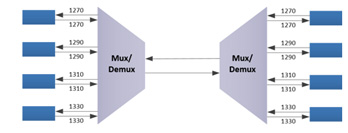

Single Fiber Bidirectional Transmission Mode
The wavelength of MUX and DEMUX is different

CWDM MUX&DEMUX 19 Rack_40.jpg

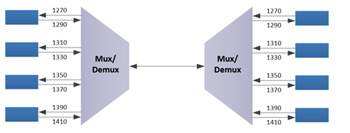

Dual Fiber Bidirectional Transmission Mode
The wavelength of MUX and DEMUX is the same

Specification

ItemsUnitCWDM MUX&DEMUX 19"Rack
ChannelsCH248121618
Operating wavelengthnm1260~1650 & 1460~1650
Transmission band insertion lossnm±6.5、±7.0、±7.5
Transmission band insertion lossdB≤1.0≤1.5≤2.5≤2.5(with skip)≤3.0(with skip)≤3.5(with skip)
Transmission Adjacent IsolationdB≥30
Transmission Non-adjacent isolationdB≥45
Return lossdB≥45
DirectivitydB≥50
RippledB≥0.5
Package dimensionmm19”1U
Operating temperature-40~+85
Fiber type900um loose tube(or customize)
Connector typeLC/PC(or customize)
