Model NO.
DWDM AAWG Module
Delivery:
FOB
The DWDM AAWG (Athermal Arrayed Waveguide Grating) module of HYC is a kind of passive module based on PLC (Planar Waveguide) technology, which does not need additional power supply or temperature control; Compared with traditional TFF (thin film filter) products, AAWG has the advantages of high integration, good uniformity, low PMD and low insertion loss. AAWG can provide a variety of channels, packaging methods and extended ports for customers to choose; At present, due to the multi-channel characteristics of DWDM AAWG, it is widely used in long-distance signal transmission such as MAN, backbone network and data center.
Quantity:

Chip Type

The DWDM AAWG provided by HYC includes Gaussian and Flat Top type chips, which customers can choose according to their actual needs.


Gaussian products
Low IL、High ISO


Flat Top products
Wide working band、Signal stability

Multiple Packaging Structures

The DWDM AAWG module provided by HYC includes two types: tail-fiber Aluminum box package or 19"1U rack package. Customers can also customize it according to their actual needs.


L120xW70xH11mm Aluminum box type

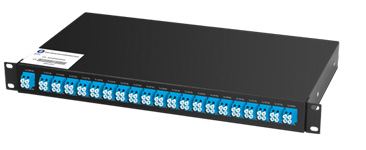

MUX&DEMUX 19” 1U Rack type

Multiple Channel Selection

The DWDM AAWG module provided by HYC includes 32CH, 40CH and 48CH channels. It is also possible to add monitoring port and expansion port, etc. according to customer requirements.

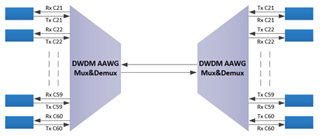

40CH 100G AAWG Mux/Demux
Single Fiber Bidirectional Module

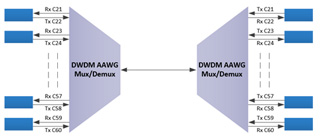

40CH 100G AAWG Mux/Demux
Dual Fiber Bidirectional Module

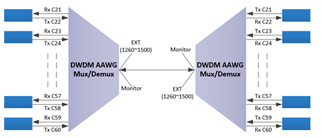

40CH 100G AAWG Mux/Demux
Single Fiber Bidirectional Module
(With EXT and Monitor ports)

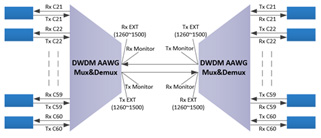

40CH 100G AAWG Mux/Demux
Dual Fiber Bidirectional Module
(With EXT and Monitor ports)

Compliance with international standards

The AAWG module of HYC conforms to RoHS, Satisfies TelcordiaGR-1209 and GR-1221.

  • RoHS
  • TelcordiaGR-1209
  • GR-1221

Specification

ParametersUnit100G DWDM AAWG Module
ChannelCH324048
Chip typeGaussianFlat Top
Operating wavelengthnm1500~1570
Channel SpacingGHz100
Channel Pass bandnmITU±0.11
Insertion LossdB≤5.0≤6.0
Bandwidth@1dBnm≥0.2≥0.4
Bandwidth@3dBnm≥0.3≥0.5
Adjacent IsolationdB≥25
Non-adjacent IsolationdB≥30
Return LossdB≥45
DirectivitydB≥50
Channel UniformitydB≤1.5
RippledB≤0.5
Total CrosstalkdB≥21
Chromatic Dispersionps/nm±20
Packaging dimensionmm

L120xW70xH11 、19”1U

Operating Temperature-5~+70
