The DWDM MUX&DEMUX ABS module of HYC is a wavelength division multiplexing technology based on TFF (thin film filter), which has a variety of package sizes and wavelength options; It MUX the optical signals of different wavelengths to a single optical fiber for transmission, and the receiving end uses the DEMUX to decompose the signals in the optical fiber into signals of different wavelengths; DWDM has 100 GHz, 200 GHz channel spacing, It is suitable for long-distance, large-capacity trunk network, or ultra-large capacity MAN core nodes, It is widely used in telecommunications 5G, MAN, backbone networks, data centers, etc.
Quantity:

Excellent Performance Parameters (WDM systems with low loss and high isolation)

DWDM MUX&DEMUX ABS Module_03.jpg

Lower Insertion Loss

Lower insertion loss makes DWDM ABS module have lower signal attenuation in operation, thus reducing the power requirement of signal transmitter.

High Isolation

The higher isolation value enables sufficient signal isolation during multi-signal transmission in the DWDM ABS module,effectively preventing crosstalk between signals and causing distortion of the transmission signal.

DWDM MUX&DEMUX ABS Module_07.jpg
DWDM MUX&DEMUX ABS Module_11.jpg

Mature Production Process

The DWDM MUX&DEMUX ABS module of HYC has mature production technology, stable and reliable performance,supports the work in the harsh environment of - 40 ~+85 ℃,and ensures the stable transmission of signals.

Compliance with international standards

The DWDM MUX&DEMUX ABS module of HYC conforms to RoHS, Satisfies TelcordiaGR-1209 and GR-1221.

DWDM MUX&DEMUX ABS Module_26.jpg
  • RoHS
  • TelcordiaGR-1209-CORE
  • GR-1221-CORE

Customizable

The DWDM MUX&DEMUX ABS module type of HYC has a variety of package sizes and wavelength options. It can also customize single or double-fiber transmission, extension port, monitoring port and so on according to customer requirements.

Package sizes is optional

DWDM MUX&DEMUX ABS Module_26.jpg
DWDM MUX&DEMUX ABS Module_30.jpg
DWDM MUX&DEMUX ABS Module_28.jpgDWDM MUX&DEMUX ABS Module_32.jpg

Optical path structure is optional;Customizable

DWDM MUX&DEMUX ABS Module_39.jpg

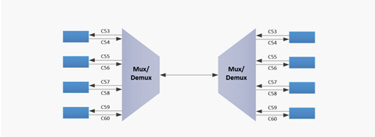

Single Fiber Bidirectional Transmission Mode
The wavelength of MUX and DEMUX is different

DWDM MUX&DEMUX ABS Module_40.jpg

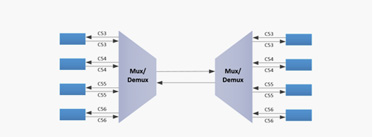

Dual Fiber Bidirectional Transmission Mode
The wavelength of MUX and DEMUX is the same

Specification

ItemsUnitDWDM MUX&DEMUX ABS Module
ChannelsCH248121620
Operating wavelengthnm1520~1600
Channel spacingGHz​100G/200G
Transmission bandnmITU±0.11/ITU±0.25
Transmission band insertion lossdB≤1.0≤1.5≤2.5≤2.5(with skip)≤3.0(with skip)≤4.0(with skip)
Transmission Adjacent IsolationdB≥28
Transmission Non-adjacent isolationdB≥45
Return lossdB≥45
DirectivitydB≥50
RippledB≥0.5
Package dimensionmmL120xW80xH18、L120xW80xH10、L100xW80xH10    MINI:L100xW45xH10、L80xW60xH12
Operating temperature-40~+85
Fiber type900um loose tube(or customize)
Connector typeLC/PC(or customize)
