The DWDM OADM ABS module of HYC is a wavelength division multiplexing technology based on TFF (thin film filter), which has a variety of package sizes and wavelength options; In the transmission optical path, OADM can upload and download WDM signals without photoelectric conversion, and it is one of the key nodes in WDM optical network. Using OADM can make its network flexible, easy to upgrade and expand its scale, and it is widely used in LAN, MAN, and other fields.
Quantity:

Excellent Performance Parameters (WDM systems with low loss and high isolation)

DWDM OAMDM Module_03.jpg

Lower Insertion Loss

Lower insertion loss makes DWDM OADM module have lower signal attenuation in operation, thus reducing the power requirement of signal transmitter.

High Isolation

The higher isolation value enables sufficient signal isolation during multi-signal transmission in the DWDM OADM module,effectively preventing crosstalk between signals and causing distortion of the transmission signal.

DWDM OAMDM Module_07.jpg
DWDM OAMDM Module_11.jpg

Mature Production Process

The DWDM OAMDM Module of HYC has mature production technology, stable and reliable performance,supports the work in the harsh environment of - 40 ~+85 ℃,and ensures the stable transmission of signals.

Compliance with international standards

The DWDM OADM module of HYC conforms to RoHS, Satisfies TelcordiaGR-1209 and GR-1221.

DWDM OAMDM Module_26.jpg
  • RoHS
  • TelcordiaGR-1209-CORE
  • GR-1221-CORE

Customizable

The DWDM OADM module of HYC has a variety of package sizes and wavelength options. It can also customize the number of channels, one-way or two-way transmission modes according to customer requirements.

Package sizes is optional

DWDM OAMDM Module_26.jpg
DWDM OAMDM Module_30.jpg
DWDM OAMDM Module_28.jpgDWDM OAMDM Module_32.jpg

Optical path structure is optional;Customizable


Single Fiber Bidirectional Transmission Mode

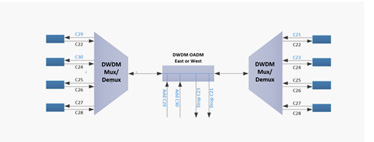

One-way OADM Drop/Add the same wavelength


Single Fiber Bidirectional Transmission Mode

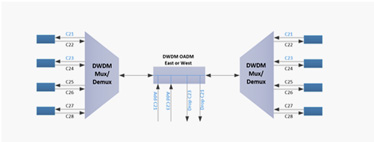

One-way OADM Drop/Add different wavelength


Dual Fiber Bidirectional Transmission Mode

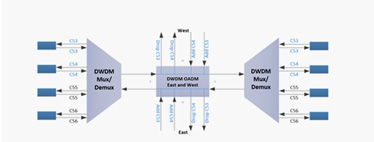

Two-way OADM Drop/Add the same wavelength


Dual Fiber Bidirectional Transmission Mode

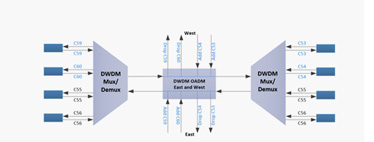

Two-way OADM Drop/Add different wavelength

Specification

ItemsUnitDWDM OAMDM Module
ChannelsCH1248
Operating wavelengthnm1520~1600
Channel spacingGHz​100G/200G
Transmission bandnmITU±0.11/ITU±0.25
Transmission band insertion lossdB≤1.0≤1.4≤1.8≤2.8
Transmission Adjacent IsolationdB≥28
Transmission Non-adjacent isolationdB≥45
Return lossdB≥45
DirectivitydB≥50
RippledB≥0.5
Package dimensionmmL120xW80xH18、L120xW80xH10、L100xW80xH10    MINI:L100xW45xH10、L80xW60xH12
Operating temperature-40~+85
Fiber type900um loose tube(or customize)
Connector typeLC/PC(or customize)
