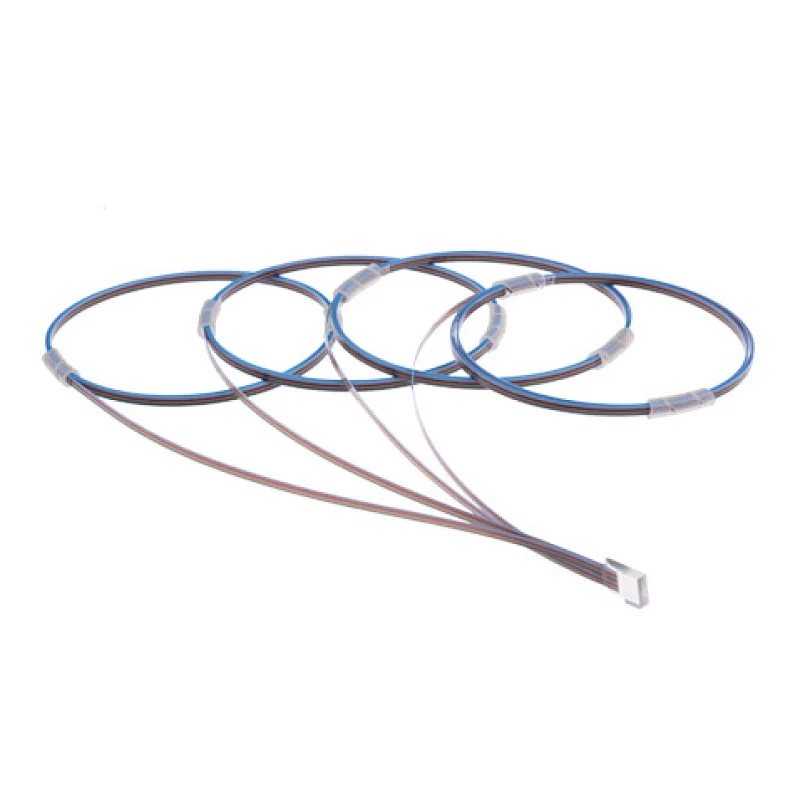

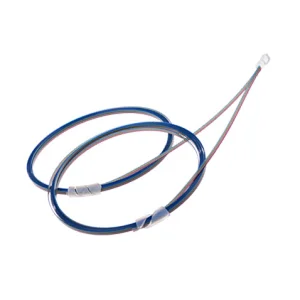

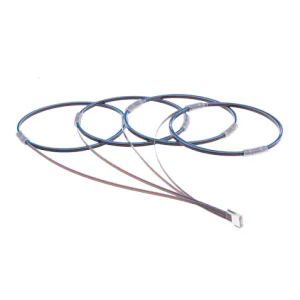

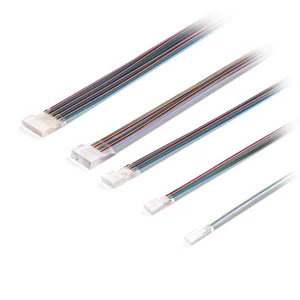

HYC self-produced fiber array provides a variety of options, such as the channel number of fiber array, core spacing and grinding angle.
Quantity:

Selection of High Quality Raw Materials

The V-groove material used by HYC's self-produced FA is quartz glass with a small expansion coefficient, and the distance tolerance accuracy between the V-groove and the groove is attain reach up to ±0.5um. The fiber used by FA is a color ribbon fiber with good performance. Anti-bending performance, colorful colors are convenient to distinguish the channels.


High Quality Parameter Indicators

HYC has a professional FA production process, and the finished product has low insertion loss, high return loss, extremely high temperature resistance and high reliability.


Compliance with international standards

HYC self-produced fiber array (FA) is RoHS compliant and meets Telcordia GR-1209-CORE and GR-1221-CORE standards.

DWDM MUX&DEMUX 19 Rack_26.jpg
  • RoHS
  • TelcordiaGR-1209-CORE
  • GR-1221-CORE

Specification

ParameterUnitSpecification
Number of channelsCH2、4、8、16、32、48、64 Number of channels
Fiber spacingum2CH 、4CH、8CH:250±0.5,8CH、16CH、32CH、48CH、64CH:127±0.5
Insertion lossdB≤0.15
Return lossdB≥55
Grinding angle°8±0.3
Operating temperature-40℃~+85
Fiber typeCorning G657A2  or customer specify
ChannelFiber typeA(mm)B(mm)C(mm)L(m)Fiber colorNote
2CH(250um)2 single core bare fibers10±0.22.5±0.052.5±0.051.5 or 2.5clearcustomer specify
4CH(250um)1 four core fiber10±0.22.5±0.052.5±0.051.5 or 2.5Blue, orange, green, brown
8CH(127um)2 four cores with fiber10±0.22.5±0.052.5±0.051.5 or 2.5Blue, orange, green, brown x2
8CH(250um)1 eight-core fiber10±0.23.0±0.052.5±0.051.5 or 2.5Blue, orange, green, brown, gray, white, red, black
16CH(127um)2 eight cores with fiber12±0.23.5±0.052.5±0.051.5 or 2.5Blue, orange, green, brown, gray, white, red, black x2
32CH(127um)4 eight cores with fiber12±0.25.7±0.052.5±0.051.5 or 2.5Blue, orange, green, brown, gray, white, red, black x4
64CH(127um)8 eight cores with fiber12±0.29.8±0.12.5±0.051.5 or 2.5Blue, orange, green, brown, gray, white, red, black x8
