Model NO.
Hybrid adapter
Delivery:
FOB
Optical fiber adapter is a device that is connected between fiber optic connectors to minimize the loss to the optical link so that the optical energy output from the transmitting fiber can be maximally coupled into the receiving fiber; The LC duplex adapter provided by HYC has the advantages of convenient installation, low insertion loss, good interchangeability, high temperature resistance, etc. It is widely used in telecom networks, CATV, FTTX etc.
Quantity:

Standard size, Easy installation

The hybrid adapters are of standard size and conform to the corresponding IEC 61754 adapter standards.

Hybrid adapter

Selected ceramic sleeve

High-precision ceramic sleeves are selected to achieve high-precision alignment of the connectors to ensure long-term stable mechanical and optical performance.

Hybrid adapter_09.jpg

Stable parameter performance

The optical fiber adapter provided by HYC meets the working environment of -40~85 °C, with an average of more than 500~1000 insertion and removal tests, with stable performance and reliable quality.

Hybrid adapter

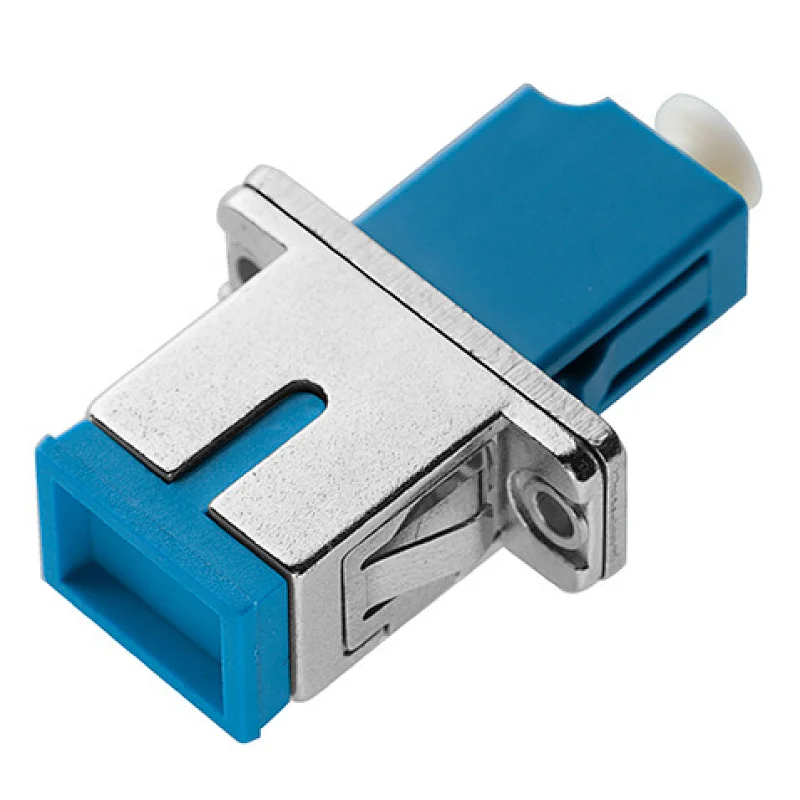

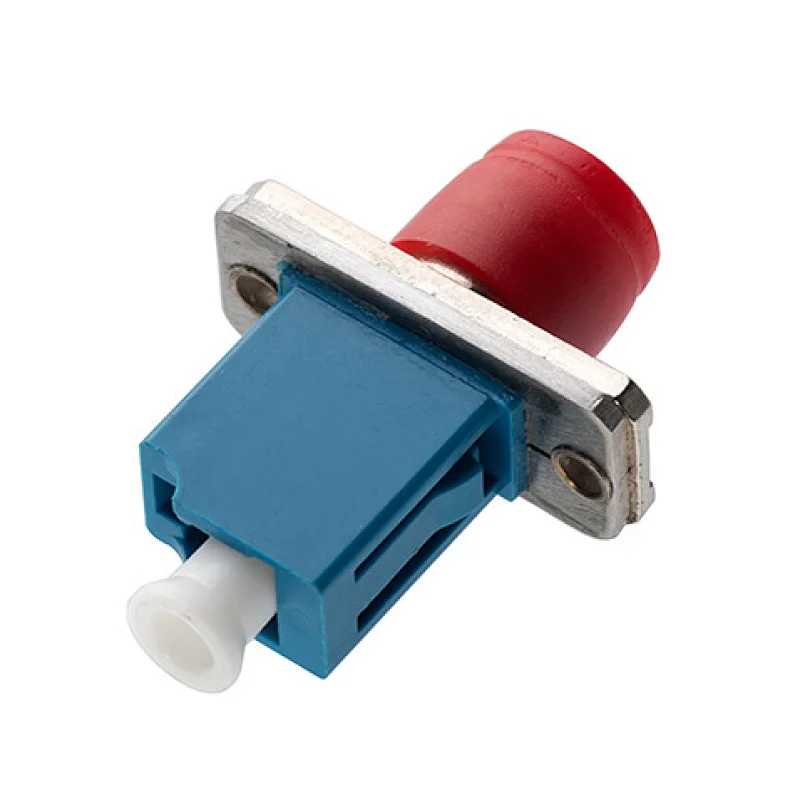

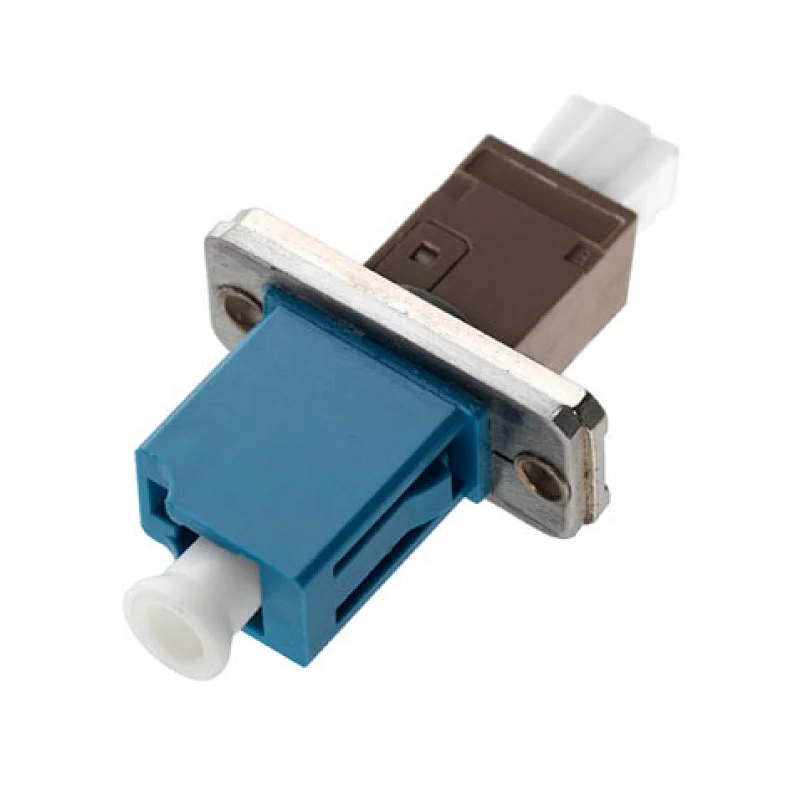

Available in a variety of styles

Hybrid adapters are available in a variety of styles.

  • Hybrid adapter_13.jpg
  • Hybrid adapter_15.jpg
  • Hybrid adapter_18.jpg
  • Hybrid adapter_23.jpg
  • Hybrid adapter_24.jpg
  • Hybrid adapter_25.jpg

Compliance with international standards

The hybrid adapter provided by HYC can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC 61754, UL 94-V0 and other standards.

Hybrid adapter
  • GR 326 or IEC 61300-2
  • RoHS
  • UL 94-V0
  • IEC 61754

Specification

ItemsInsertion LossMechanical resistanceRepeatabilityOperating Temperature
SM/PC≤0.2dB100-300g<0.2dB(500times)-40℃~+85℃
SM/APC≤0.2dB100-300g<0.2dB(500times)-40℃~+85℃
MM/PC≤0.2dB100-300g<0.2dB(500times)-40℃~+85℃
