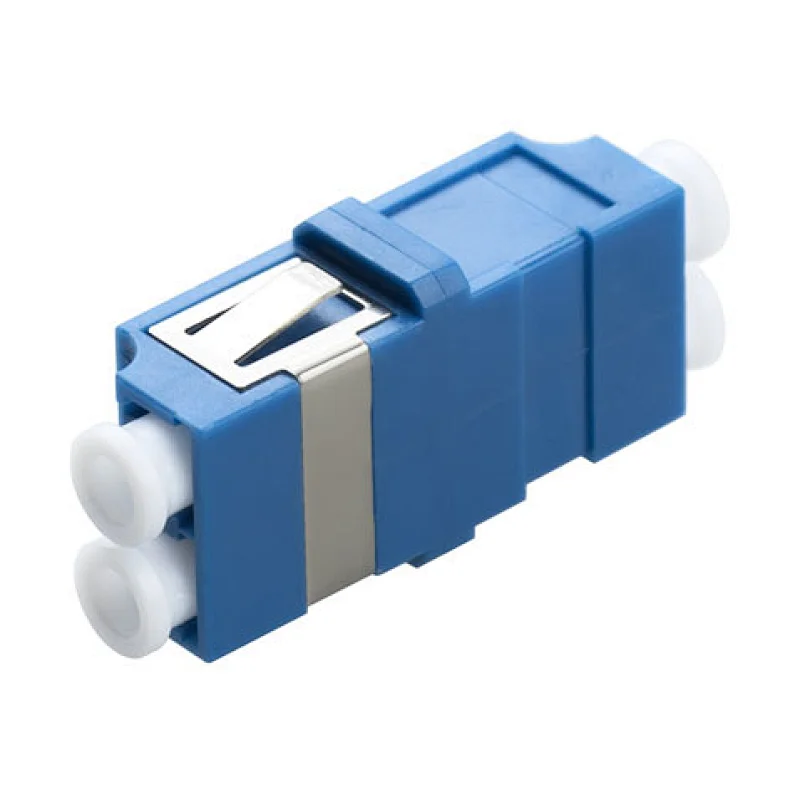

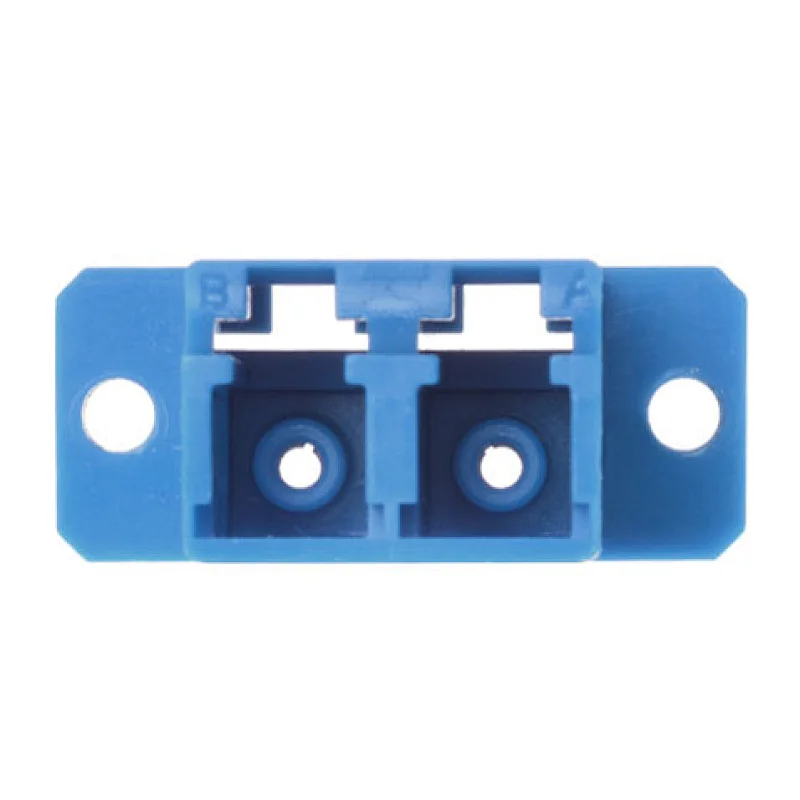

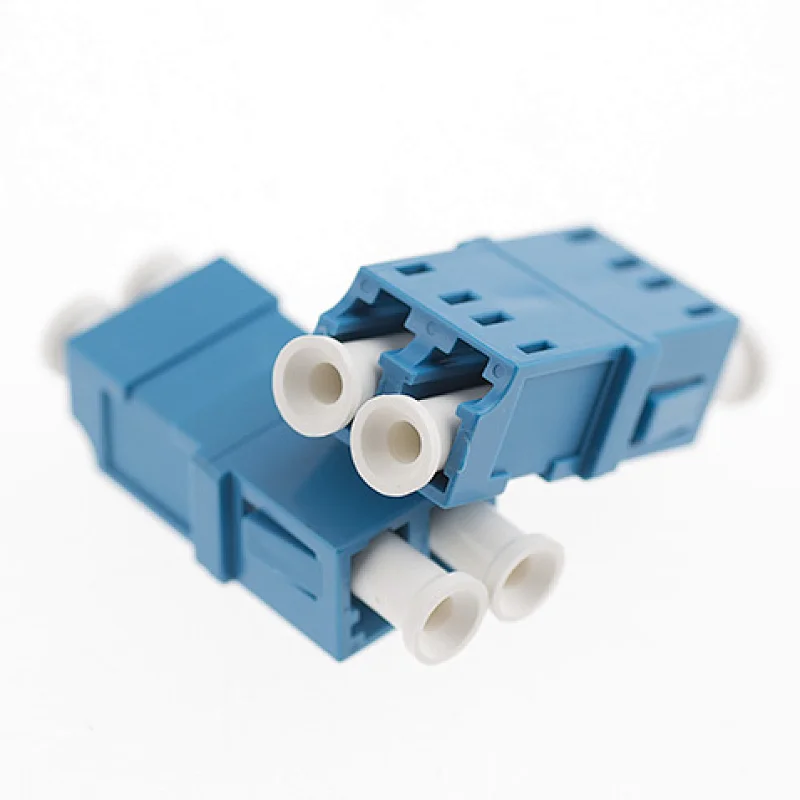

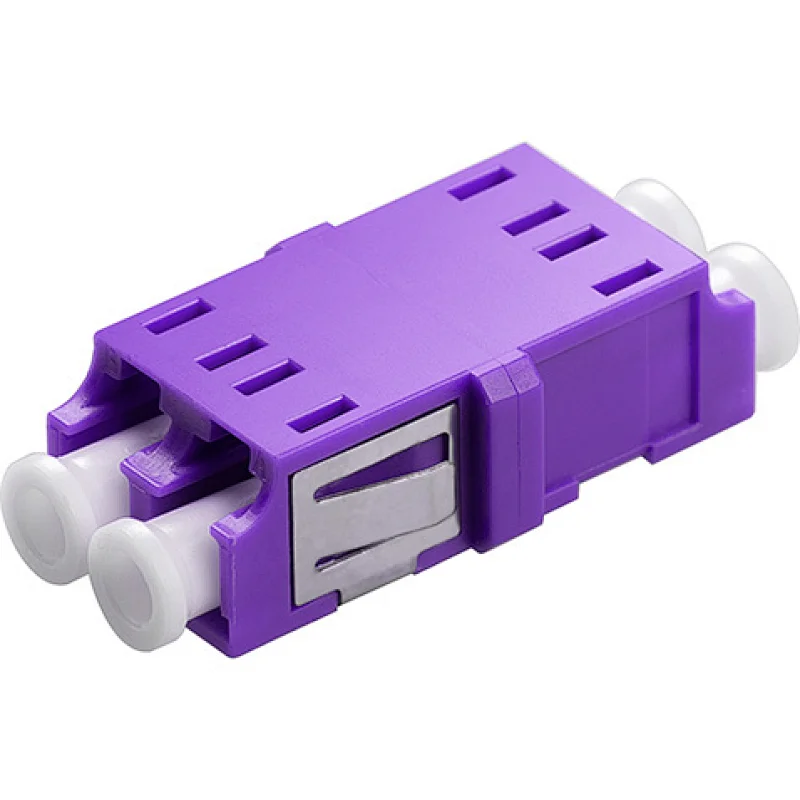

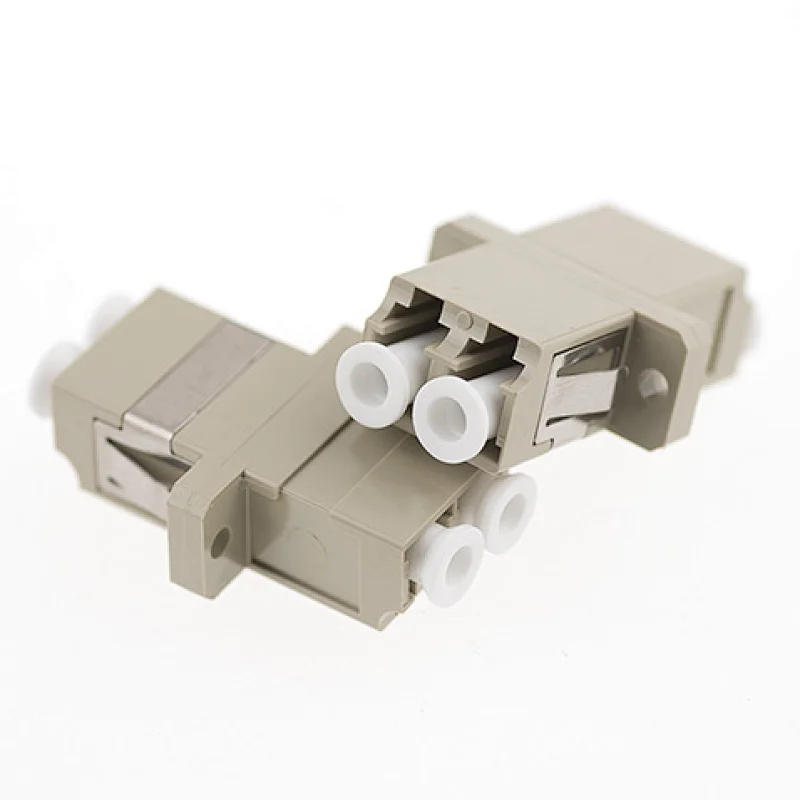

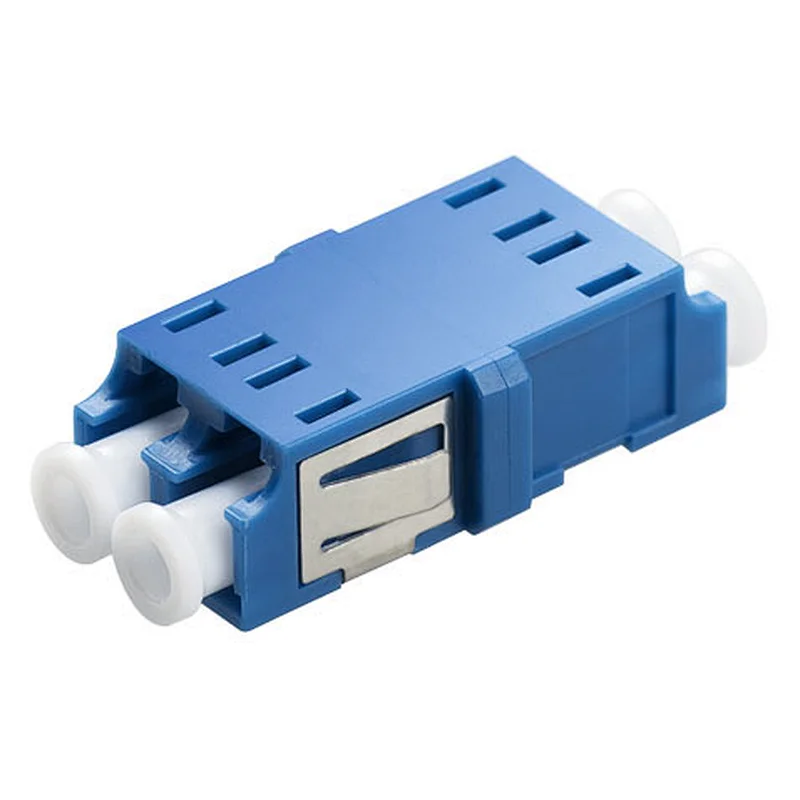

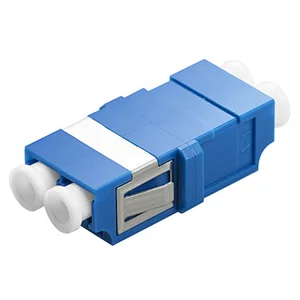

LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type
LC Duplex Adapter SC type

LC Duplex Adapter SC type

Model NO.
LC
Delivery
FOB
Optical fiber adapter is a device that is connected between fiber optic connectors to minimize the loss to the optical link so that the optical energy output from the transmitting fiber can be maximally coupled into the receiving fiber; The LC duplex adapter provided by HYC has the advantages of convenient installation, low insertion loss, good interchangeability, high temperature resistance, etc. It is widely used in telecom networks, CATV, FTTX etc.
Quantity:

Standard size, Easy installation

The LC adapter is a standard square body SC type, which is easy and quick to install.

LC Duplex Adapter SC type

Selected ceramic sleeve

High-precision ceramic sleeves are selected to achieve high-precision alignment of the connectors to ensure long-term stable mechanical and optical performance.

LC Duplex Adapter SC type

Stable parameter performance

The optical fiber adapter provided by HYC meets the working environment of -40~85 °C, with an average of more than 500~1000 insertion and removal tests, with stable performance and reliable quality.

LC Duplex Adapter SC type

Multiple styles available

LC duplex adapter are available in a variety of options.

Forming methodSpringWindowFlangeColor
LC Duplex Adapter SC type_13.jpg

Welded type

LC Duplex Adapter SC type_15.jpg

     Metal

LC Duplex Adapter SC type_17.jpg

     With

LC Duplex Adapter SC type_19.jpg

     With

Green
Violet
Blue
LC Duplex Adapter SC type_24.jpg

One piece

LC Duplex Adapter SC type_25.jpg

Plastic

LC Duplex Adapter SC type_26.jpg

Without

LC Duplex Adapter SC type_27.jpg

Without

Yellow
Beige
Rose red

Compliance with international standards

The LC duplex adapter provided by HYC can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC 61754-20, UL 94-V0 and other standards.

LC Duplex Adapter SC type_26.jpgLC Duplex Adapter SC type_28.jpg
  • GR 326 or IEC 61300-2
  • RoHS
  • UL 94-V0
  • IEC 61754-20

Specification

ItemsInsertion LossMechanical resistanceRepeatabilityOperating Temperature
SM/PC≤0.2dB100-300g<0.2dB(500times)-40℃~+85℃
SM/APC≤0.2dB100-300g<0.2dB(500times)-40℃~+85℃
MM/PC≤0.2dB100-300g<0.2dB(500times)-40℃~+85℃
