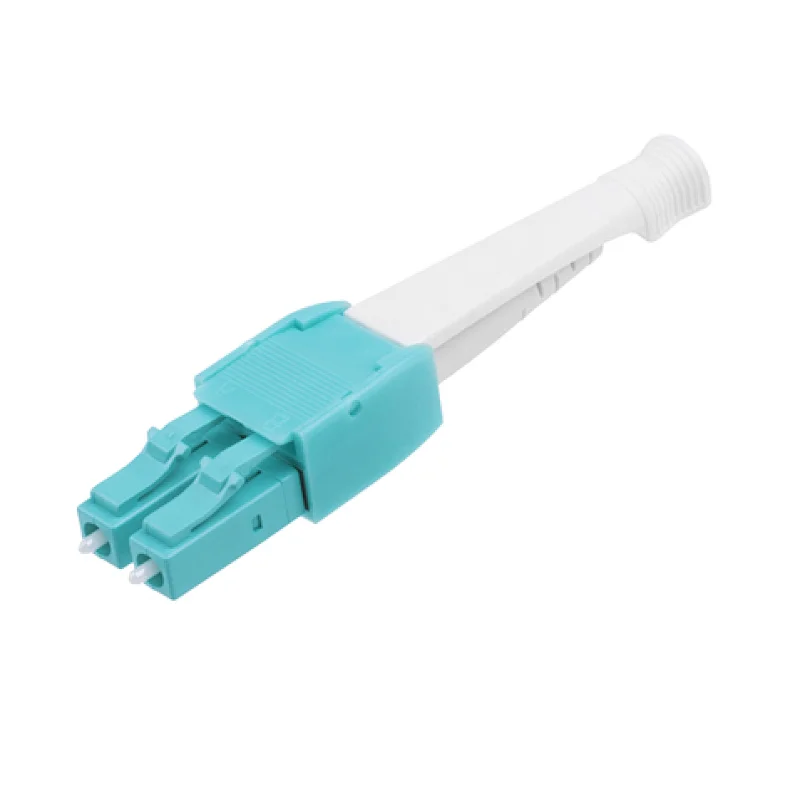

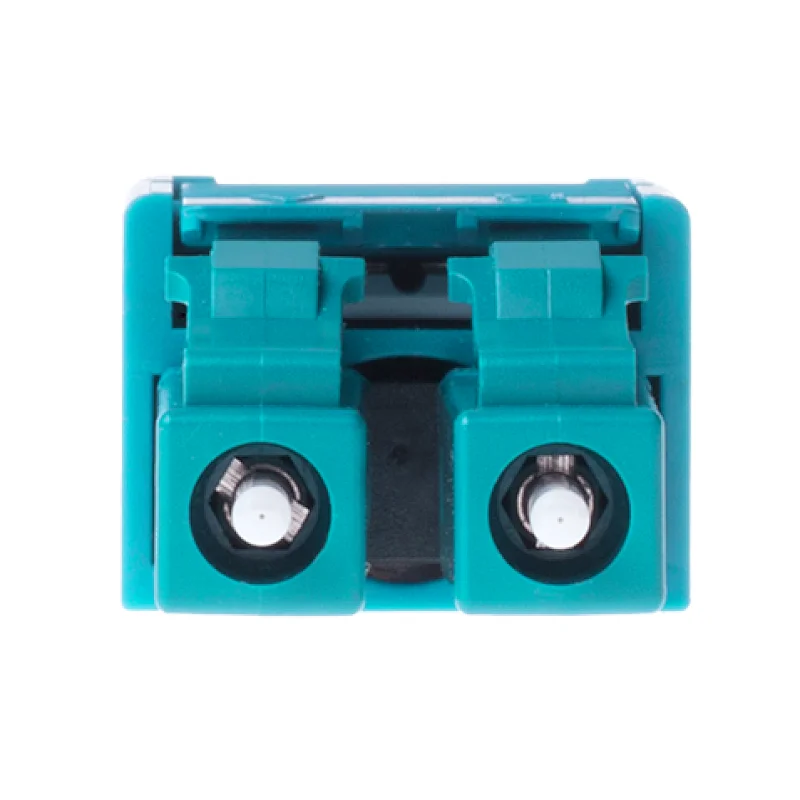

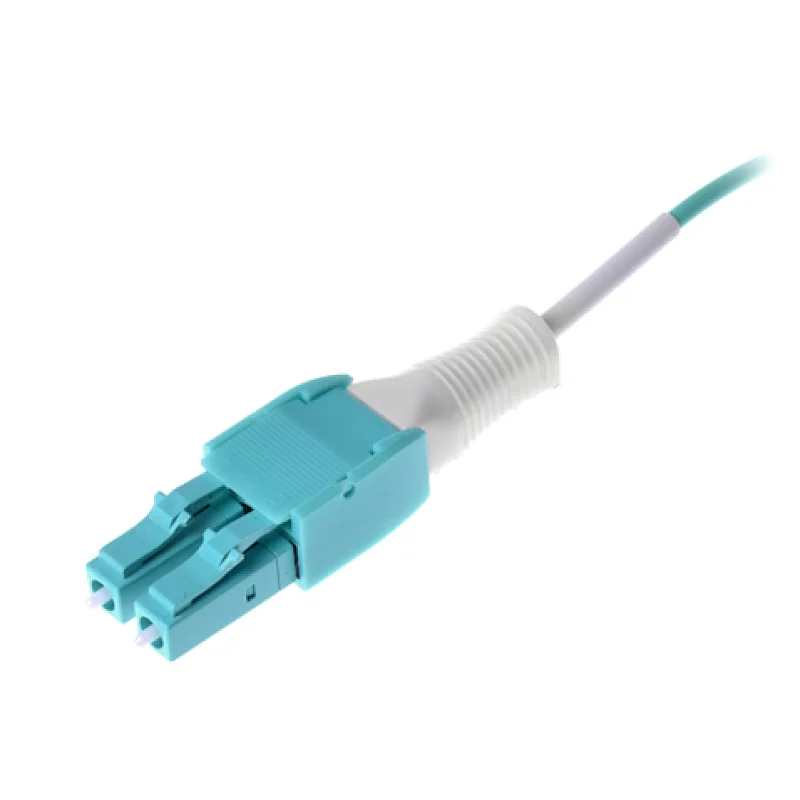

LC Push-Pull Uniboot Connector
LC Push-Pull Uniboot Connector
LC Push-Pull Uniboot Connector
LC Push-Pull Uniboot Connector
LC Push-Pull Uniboot Connector
LC Push-Pull Uniboot Connector
LC Push-Pull Uniboot Connector
LC Push-Pull Uniboot Connector
LC Push-Pull Uniboot Connector
LC Push-Pull Uniboot Connector
LC Push-Pull Uniboot Connector

LC Push-Pull Uniboot Connector

Model NO.
LC
Delivery
FOB
A Uniboot connector that come with a Push-Pull tab, which can be used in a high density environment. Comparing to the conventional duplex connector, the design is more compact, as well as just one cable was used, which help to improve the hot air flow in a high density and a crowed environment. HYC did an unique and a patented design to reach in a highest density in the industry.
Quantity:

Compact Design

Comparing to the conventional duplex connector, the design is more compact, as well as just one cable was used,which help to improve the hot air flow in a high density and a crowed environment.

LC Push-Pull Uniboot Connector_06.jpg

HIGH
DENSITY
IN PANEL

LC Push-Pull Uniboot Connector

Push-pull Design

Push-pull design ensure easier release from the HD environment.

LC Push-Pull Uniboot Connector_11.jpg

Easy Polarity Revisable

Allows the fiber polarity to be switched without
the need for special tools.

polarity
LC-Uniboot(EN)_16.pngStrip the boot
LC-Uniboot(EN)_18.pngRevise the polarity
LC-Uniboot(EN)_20.pngRelocate the boot

Avoid Cable Twine Together

A surround tab end avoid the cable ganged each other.

LC Push-Pull Uniboot Connector_40.jpg

International Standards

IEC 61754-20 and GR-326-core complaint; RoHS/REACH and UL94-V0 inflammability grade complaint.

LC Push-Pull Uniboot Connector_43.jpgLC Push-Pull Uniboot Connector_45.jpg

Various Colors

A customized logo is optional; and available in a variety of colors.

LC Push-Pull Uniboot Connector_49.jpg

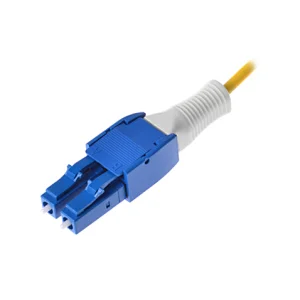

Blue

LC Push-Pull Uniboot Connector_52.jpg

Aqua blue

Specification

ItemsSingle modeMulti mode
Insertion Loss≤0.3dB≤0.3dB
Return Loss≥50dB(UPC);≥60dB(APC)≥30dB
Ceramic ferrule spec125.5um concentricity deviations:＜1um127um concentricity deviations:＜3um
Insert-pull test500 times ＜0.3dB
Operation temperature-40℃～+85℃
Suitable fiberPC/APC(9/125um)PC(50/125um,62.5/125um)
  • Model Number：LC Push-Pull Uniboot Connector
  • Brand Name：hyc
  • Place of Origin：Qingyuan City, Guangdong,China

Send Message

* clear input
*
*

Related Products

MPO 12C&24C connector
MPO 12C&24C connector
Model NO. MPO connector
MPO 16C&32C connector
MPO 16C&32C connector
Model NO. MPO connector
SC Secure Lockable Connector
SC Secure Lockable Connector
Model NO. SC Connector

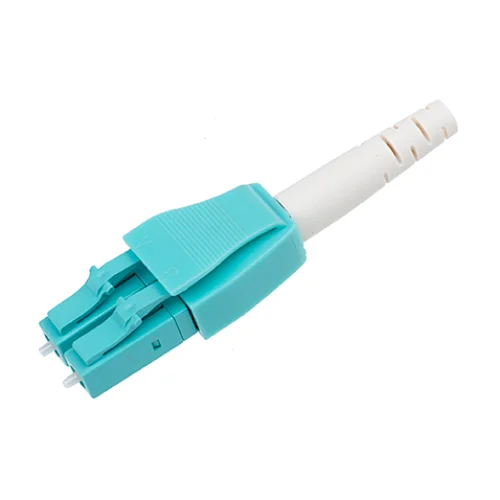

LC Uniboot Connector
