Model NO.
LC Uniboot Connector
Delivery:
FOB

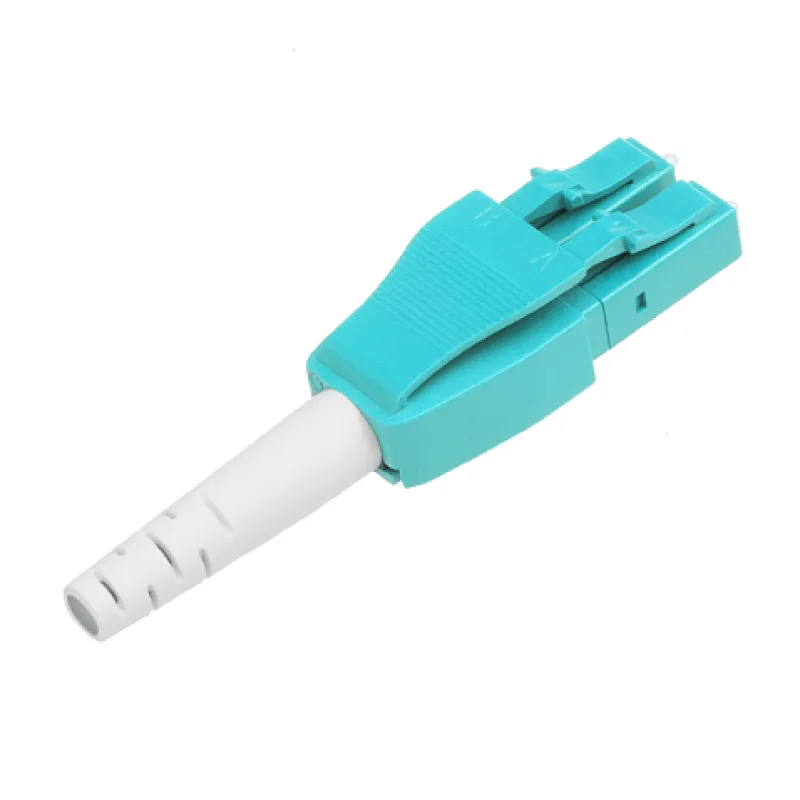

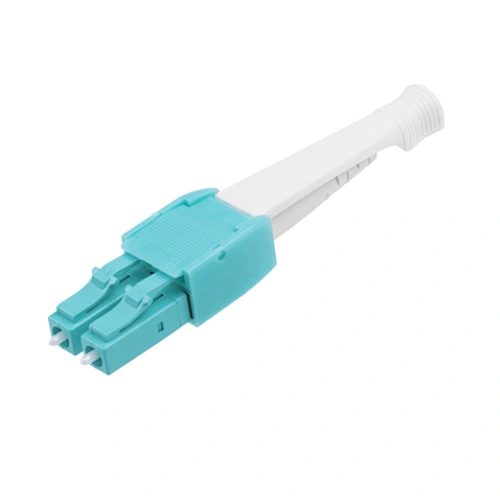

An extended latch Uniboot connector that the total height doesn’t exceed the adapter, which can be used in a high density environment. Comparing to the conventional duplex connector, the design is more compact, as well as just one cable was used, which help to improve the hot air flow in a high density and a crowed environment.
Quantity:

Compact Design

Cable assemblies with LC uniboot connectors save half of
the cable infrastructure space over traditional
duplex cable products.

Extended Press Latch

The extended press latch is convenient for the user to insert and release the adapter

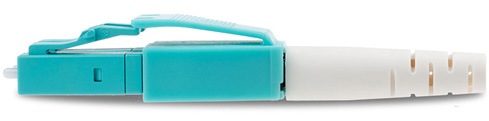

Extended press latch,easily release from adapter


Compact height not exceed the adapterC

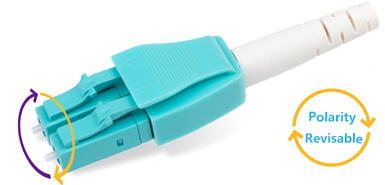

Easy Polarity Revisable

Innovatively set the two plugs of the fiber optic connector to be interchangeable. Easily strip the boot and revise the polarity.

LC Duplexen)_13.jpg
LC Push-Pull Uniboot Connector_06.jpgLC Push-Pull Uniboot Connector_06.jpgLC Push-Pull Uniboot Connector_06.jpg

International Standards

IEC 61754-20 and GR-326-core complaint; RoHS/REACH and UL94-V0 inflammability grade complaint.

Various Colors

A customized logo is optional; and available in a variety of colors.

LC Push-Pull Uniboot Connector_49.jpg

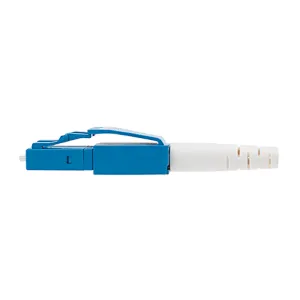

Blue

LC Push-Pull Uniboot Connector_52.jpg

Aqua blue

Specification

ItemsSingle modeMulti mode
Insertion Loss≤0.3dB≤0.3dB
Return Loss≥50dB(UPC);≥60dB(APC)≥30dB
Ceramic ferrule spec125.5um concentricity deviations:<1um127um concentricity deviations:<3um
Insert-pull test500 times <0.3dB
Operation temperature-40℃~+85℃
Suitable fiberPC/APC(9/125um)PC(50/125um,62.5/125um)
