Model NO.
MPO connector
Minimum order quantity:
1

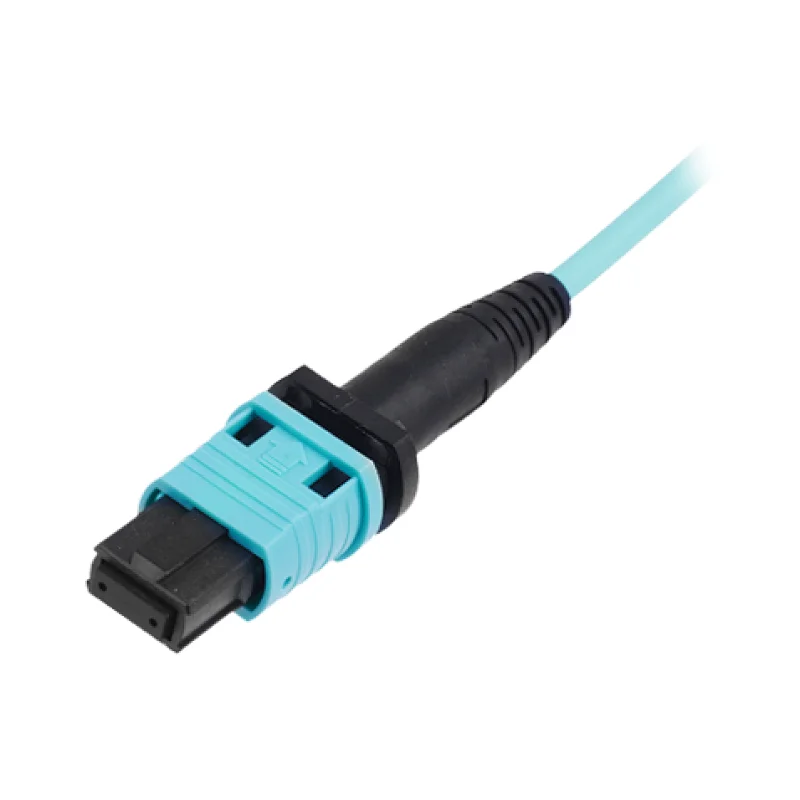

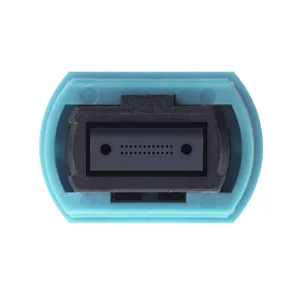

MPO connector comes with multifiber applies to high density in data center or telecommunication systems. It depends on the high precision metal guide pin and the high precision ferrule pin hole to ensure the optical alignment. It’s comes with SM,SMLL,MM,MMLL,8F,12F, 24F,regular force spring, high force spring for your choice.
Quantity:

Compact Design

Compact design, up to 24 fiber ribbons,applies to high density in data center or telecommunication systems.

LC Push-Pull Uniboot Connector

Excellent Stability

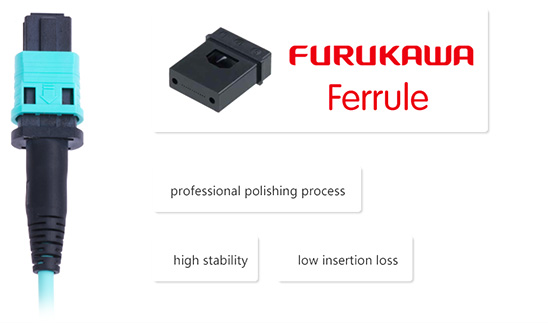

The FURUKAWA ferrule imported from Japan and professional polishing process ensure high stability and low insertion loss of the connector.

LC Push-Pull Uniboot Connector_10.jpg

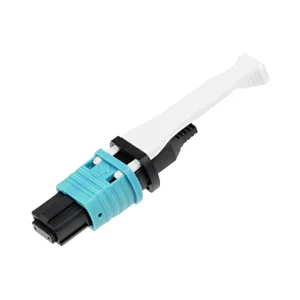

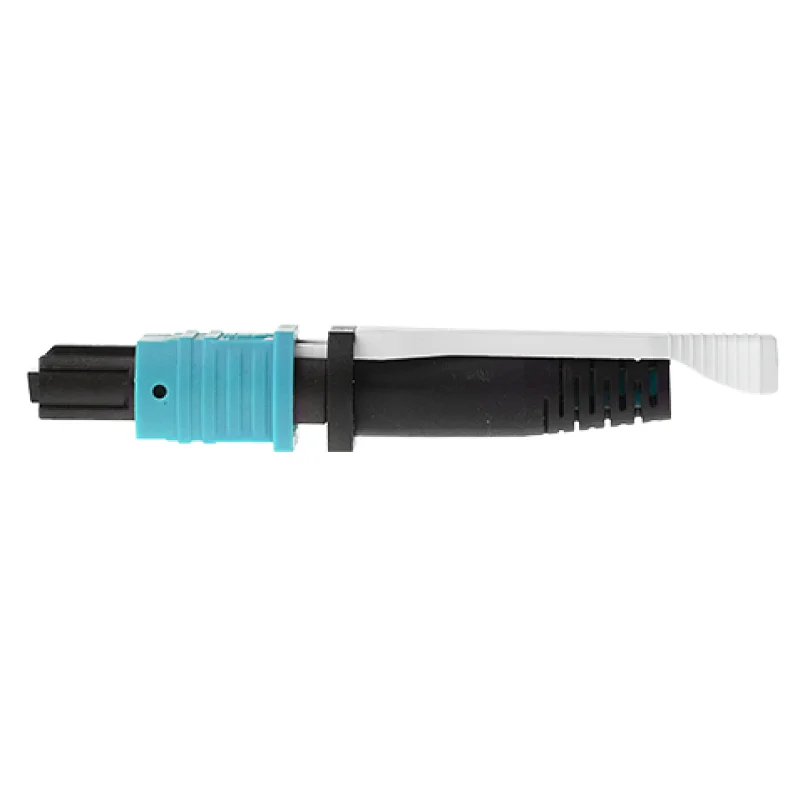

Patented Push-pull Tab

The patented push-pull tab design provides quick and easy connection, and is also well-suited for high-density, high-traffic applications.

LC Push-Pull Uniboot Connector_11.jpg

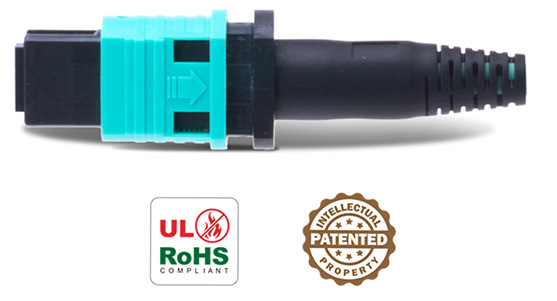

Compliant to International Standards

IEC 61754-7 and GR-1435 complaint; RoHS/REACH and UL94-V0 inflammability grade complaint.

LC Push-Pull Uniboot Connector_43.jpg

A Variety of Choices

Applies to 3.0/3.6mm round cable and 12C/24C Ribbon fiber.

LC Push-Pull Uniboot Connector_43.jpg

Specification

​ItemsElite PerformanceStd Performance
SMMMSMMM
Insertion Loss12F24F12F24F12F,24F12F,24F
≤0.25dB≤0.35dB≤0.35dB≤0.7dB≤0.7dB
Return Loss≥55dB≥20dB≥55dB≥20dB
Durability50times
Operation temperature-40℃~+85℃
Fiber TypeOS2/OM1/OM2/OM3/OM4
