MPO/MTP Loopback Patch cord

Model NO.: MPO/MTP Loopback Patch cord
Delivery:: FOB
Minimum order quantity:: 1

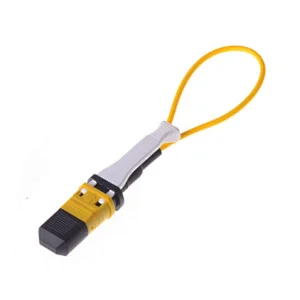

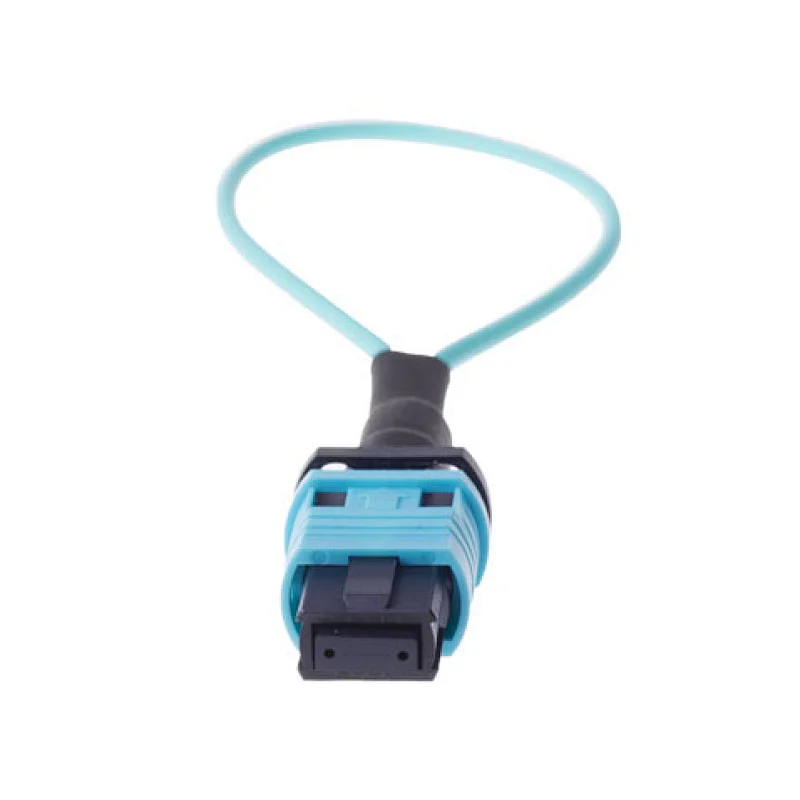

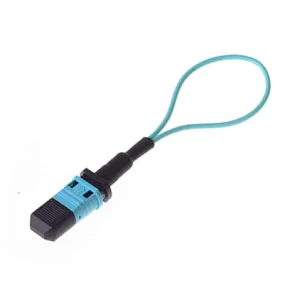

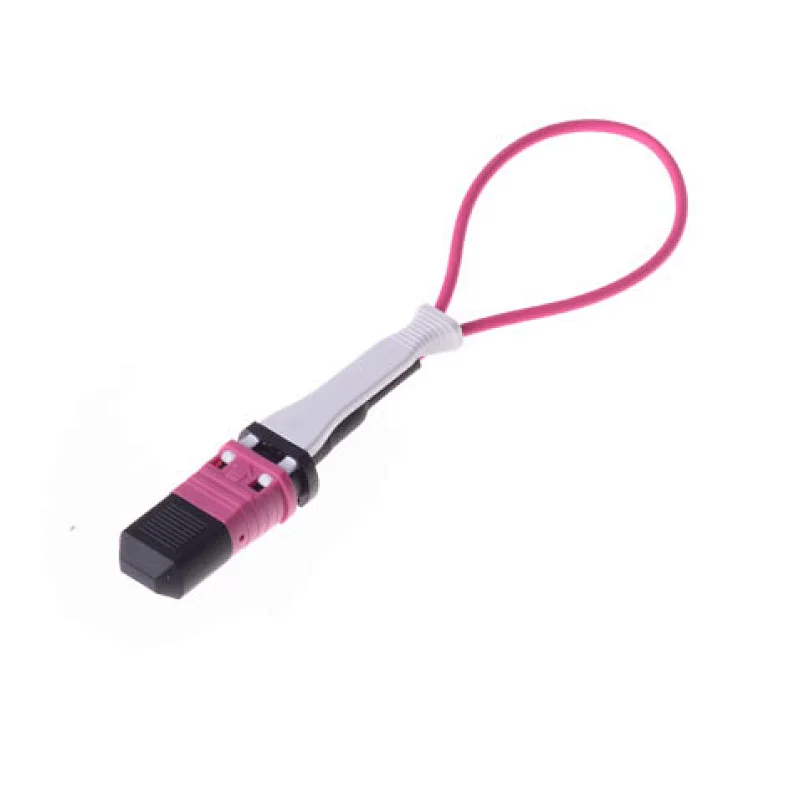

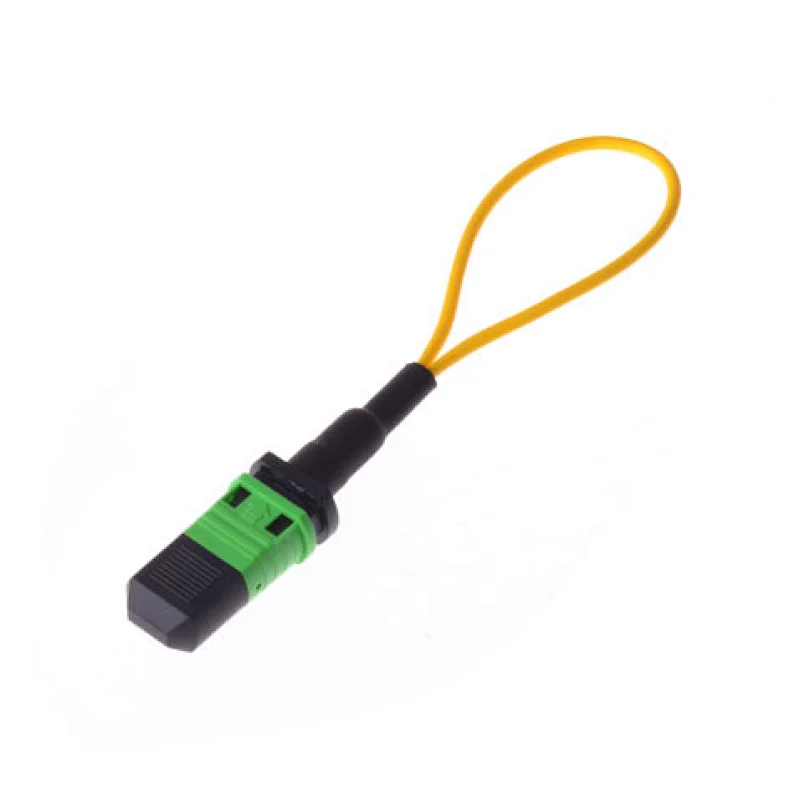

MPO / MTP Loopback Patch Cord, it is the processing of both ends of the multi core fiber into a single MPO / MTP connector, so that a single MPO / MTP connector can TX and RX, so as to achieve the loop function; It is mainly used to test the TX capability and TX of network equipment Sensitivity to locate potential anomalies; HYC can provide all kinds of MPO/MTP loopback patch cord products. The transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization. It is widely used in optical network scenarios such as Backbone Network, Monitoring Device and Data Center etc.

Quantity:

Product Description

High quality, 100% Tested

The MPO/MTP Loopback Patch Cord provided by HYC are 100% tested, which meets product standards and meets customer needs.

Il and return loss tested
MPO / MTP polarity tested
Connector 3D tested
Ferrule end face inspected

High quality ferrules

The MPO/MTP Loopback Patch Cord is made of high quality ferrules, professional grinding technology, and precise end connection of the fiber end faces, which makes the transmission more stable and the connection more efficient.

Stable parameter performance

The MPO/MTP Loopback Patch Cord provided by HYC meets the operating environment of-25~70 °C, More than 1,000 mating durability tests on average, stable performance and reliable quality.

Multiple styles and can be customized

HYC provides a variety of MPO/MTP Loopback Patch Cord, and can also be customized.

Mold	cores	Ferrule type	Housing color	Fiber Type
SM	8 core	UPC	Beige	Ribbon fiber
	12 core		yellow	φ3.0mm
	16 core		Green	φ3.6mm
MM	24 core	APC	Rose red	φ4.0mm
	32 core		Aqua	φ5.0mm
	.....		.....	......

Examples:

MPO (Push-Pull) OM4 8 core loopback patch cord
MPO (Push-Pull) SM 12 core loopback patch cord
MPO OM3 12 core loopback patch cord
MPO SM 16 core loopback patch cord

Difference between 12&24 and 16&32 core MPO connectors

The difference between 12/24F MPO Connector and 16/32F MPO Connector is the place of the key which is in the middle of 12/24F MPO Connector and in the right of 16/32F Connector.

12/24F MPO Connector
16/32F MPO Connector

The Examples of MPO / MTP polarity classification

Compliance with international standards

The MPO/MTP Loopback Patch Cord provided by HYC can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC 61754-7, IEC 61753-1, IEC61300-3-4 and other standards.

GR 326 or IEC 61300-2
RoHS
IEC 61754-7
IEC 61753-1

Specification

Items	MTP/MPO(Elite)				MTP/MPO(Std)
Insertion Loss	SM		MM		SM		MM
	8F,12F	24F	8F,12F,16F	24F,32F	8F,12F	24F	8F,12F,16F	24F,32F
	≤0.7dB	≤1.0dB	≤0.7dB	≤1.0dB	≤1.4dB		≤1.4dB
Return Loss	≥50dB		≥20dB		≥50dB		≥20dB
Durability	500 times
Operation temperature	-25℃～+70℃
Fiber Type	OS2/OM1/OM2/OM3/OM4
