Model NO.
MT-RJ connector
Delivery:
FOB

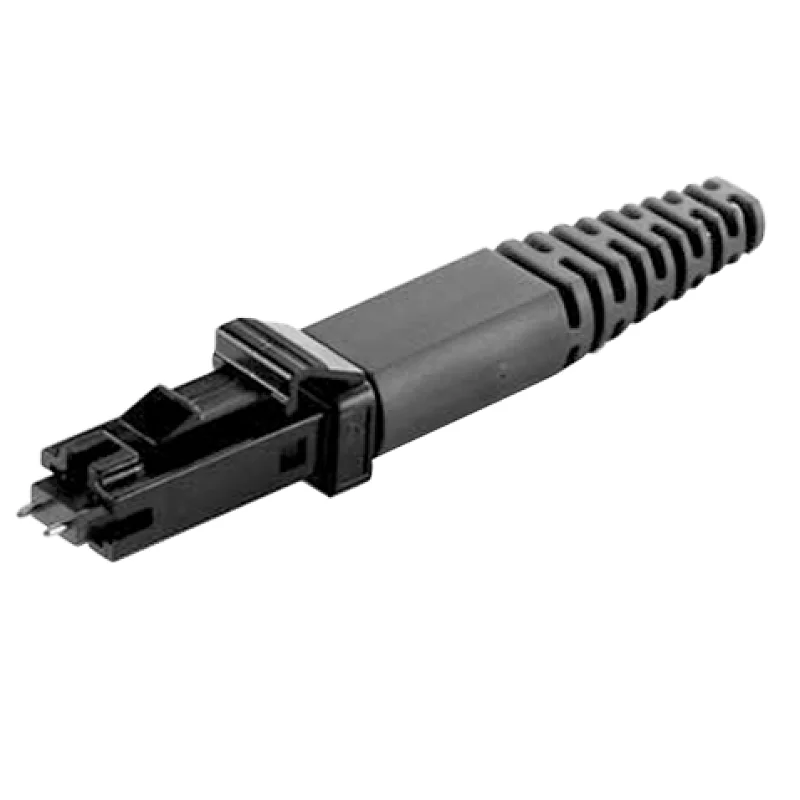

Optical fiber connector is a detachable (movable) connection device between fiber and fiber. It precisely butts the two ends of fiber, reduces the loss of optical link as much as possible, and enables the optical signal output by transmitting optical fiber to be coupled to the receiving optical fiber as much as possible. The MT-RJ connector provided by HYC has the advantages of receive and send merge, low insertion loss and high density. It is widely used in telecommunication networks, CATV, data center, etc.
Quantity:

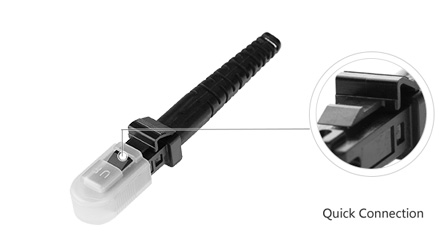

Easy installation

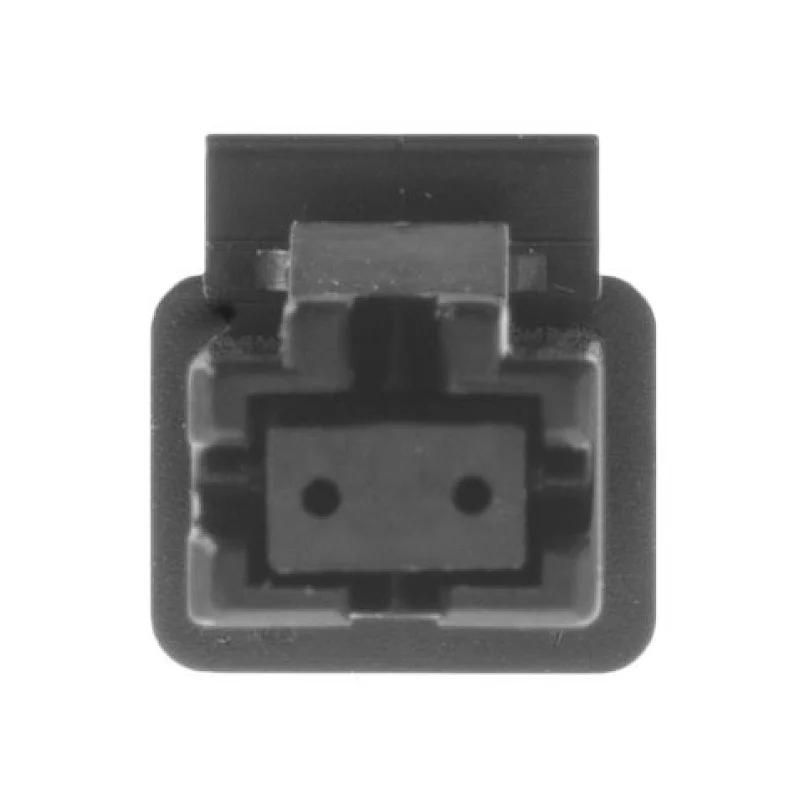

MT-RJ standard square connector, with durable plastic body, RJ-45 quick connection, easy to insert and remove.

MT-RJ Optical Fiber Connector

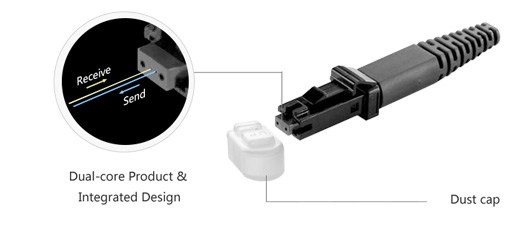

Receive and send merge

The MT-RJ connector is a dual-core product. Signal reception and transmission can be integrated into one, making connection more convenient and efficient.

Small size, high density

The MT-RJ connector is half the size of the SC connector and doubles the port density compared to conventional fiber optic connectors.

MT-RJ Optical Fiber Connector

Stable parameter performance

The MT-RJ connector provided by HYC meets the working environment of -40~85 °C, with an average of more than 500~1000 insertion and removal tests, with stable performance and reliable quality.

MT-RJ Optical Fiber Connector

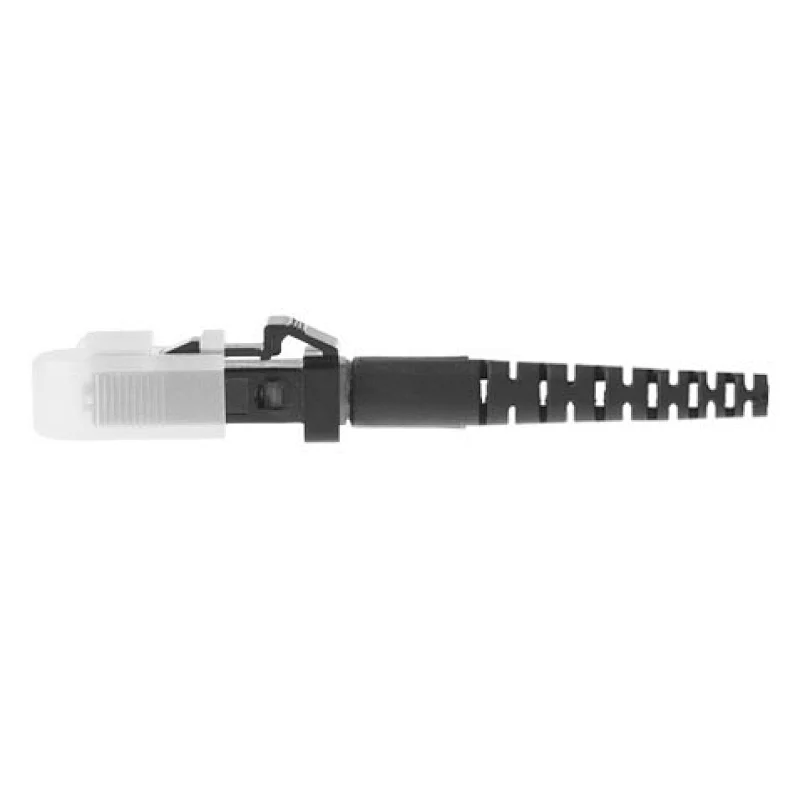

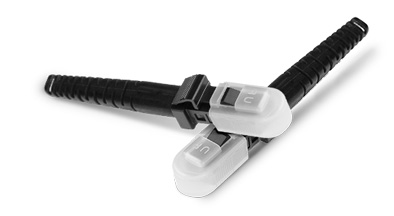

Multiple styles available

MT-RJ Optical fiber connectors are available in a variety of styles for customers to choose from.

MT-RJ Optical Fiber Connector_11.jpg

3.0mm Boot

MT-RJ Optical Fiber Connector_13.jpg

2.0mm Boot

MT-RJ Optical Fiber Connector_15.jpg

1.8mm Boot

Compliance with international standards

The MT-RJ Optical fiber connector provided by HYC can meet Telcordia GR 326 or IEC 61300-2; It is compliant with RoHS, IEC61754-18, IEC 61300-3-4, IEC 61300-3-34 and other standard

MT-RJ Optical Fiber Connector
  • GR 326 or IEC 61300-2
  • RoHS
  • IEC 61754-18
  • IEC 61300-3-4

Specification

ItemMT-RJ Optical Fiber Connector
ModeSMMM
Suitable fiber9/125um50/125um,62.5/125um
Insertion loss≤0.50dB≤0.50dB
Return loss≥50dB(PC)≥30dB(PC)
Insert-pull test>500 times,<0.3dB
Operating temperature-40℃~+85℃
