Model NO.
MU Adapter
Delivery:
FOB

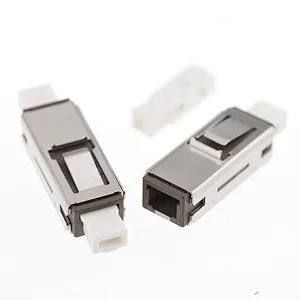

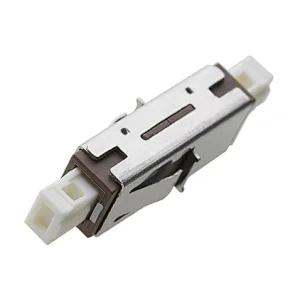

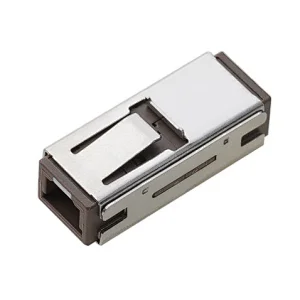

Optical fiber adapter is a device that is connected between fiber optic connectors to minimize the loss to the optical link so that the optical energy output from the transmitting fiber can be maximally coupled into the receiving fiber; The MU adapter provided by HYC has the advantages of convenient installation, low insertion loss, good interchangeability, high and low temperature resistance, and is widely used in telecom networks, CATV, FTTX etc..
Quantity:

Small size, High density

The MU adapter is only half the size of a normal SC adapter and has a higher mounting density.

MU Adapter

Selected ceramic sleeve

High-precision ceramic sleeves are selected to achieve high-precision alignment of the connectors to ensure long-term stable mechanical and optical performance.

MU Adapter

Stable parameter performance

The optical fiber adapter provided by HYC meets the working environment of -40~85 °C, with an average of more than 500~1000 insertion and removal tests, with stable performance and reliable quality.

MU Adapter

Available in a variety of styles

MU adapters are available in a variety of styles.

MU Adapter_12.jpg

Simplex

MU Adapter_14.jpg

Duplex

MU Adapter_16.jpg

8-Port

Compliance with international standards

The MU adapter provided by HYC can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC 61754-6, UL 94-V0 and other standards.

MU Adapter_26.jpg
  • GR 326 or IEC 61300-2
  • RoHS
  • UL 94-V0
  • IEC 61754-6

Specification

ItemsInsertion LossMechanical resistanceRepeatabilityOperating Temperature
SM/PC≤0.2dB200-600g<0.2dB(500times)-40℃~+85℃
SM/APC≤0.2dB200-600g<0.2dB(500times)-40℃~+85℃
MM/PC≤0.2dB200-600g<0.2dB(500times)-40℃~+85℃
