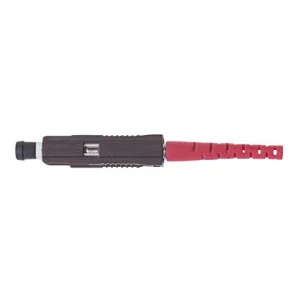

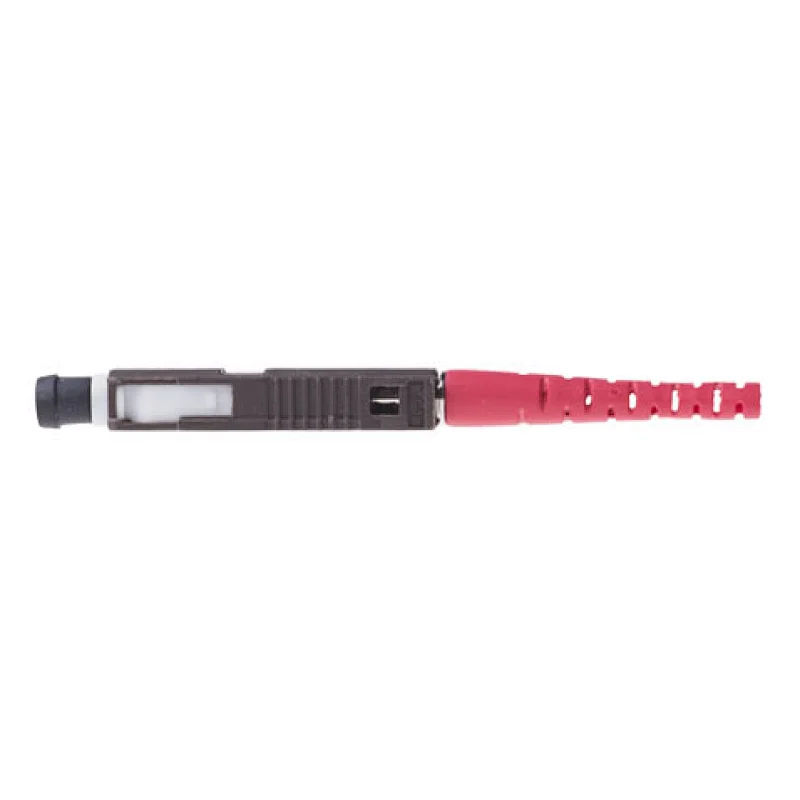

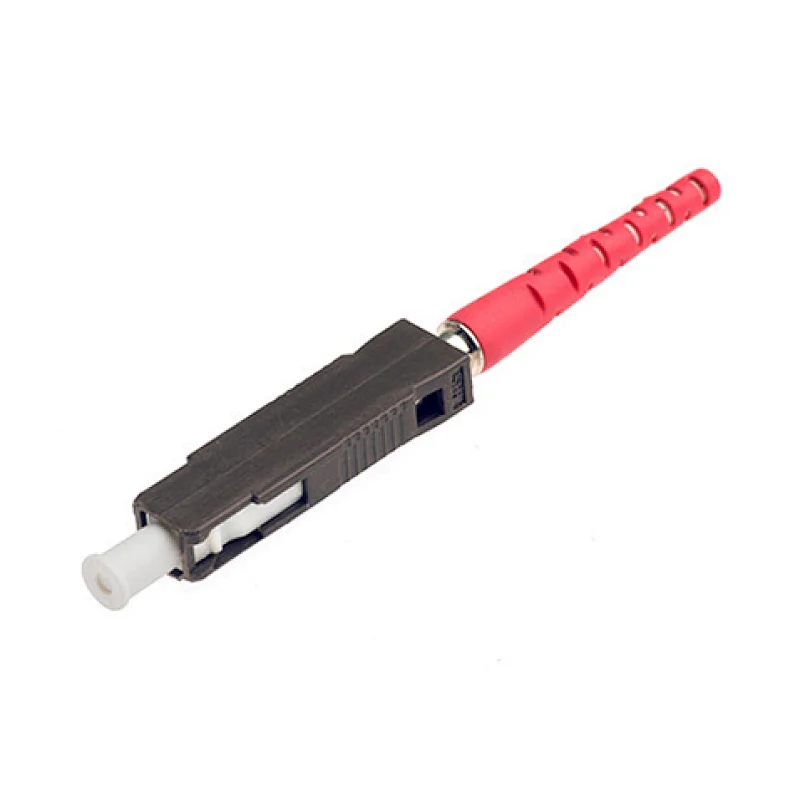

MU Connector

Model NO.: MU Connector
Delivery:: FOB
Minimum order quantity:: 1

An optical fiber connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers.

Quantity:

Product Description

High density package

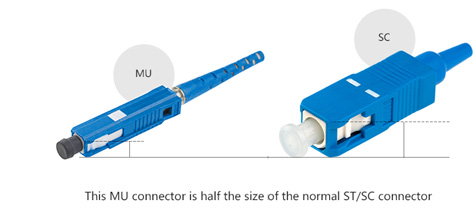

The MU connector features a pre-assembled body, with square shape and a push-pull latching for easy operation. This MU connector is approximately half the size of the normal ST/SC connector, which is ideal for high-density situations.

High optical performance

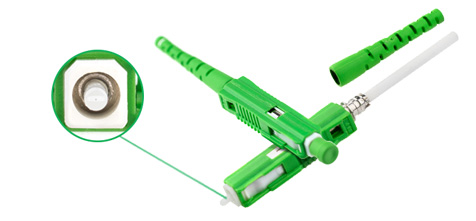

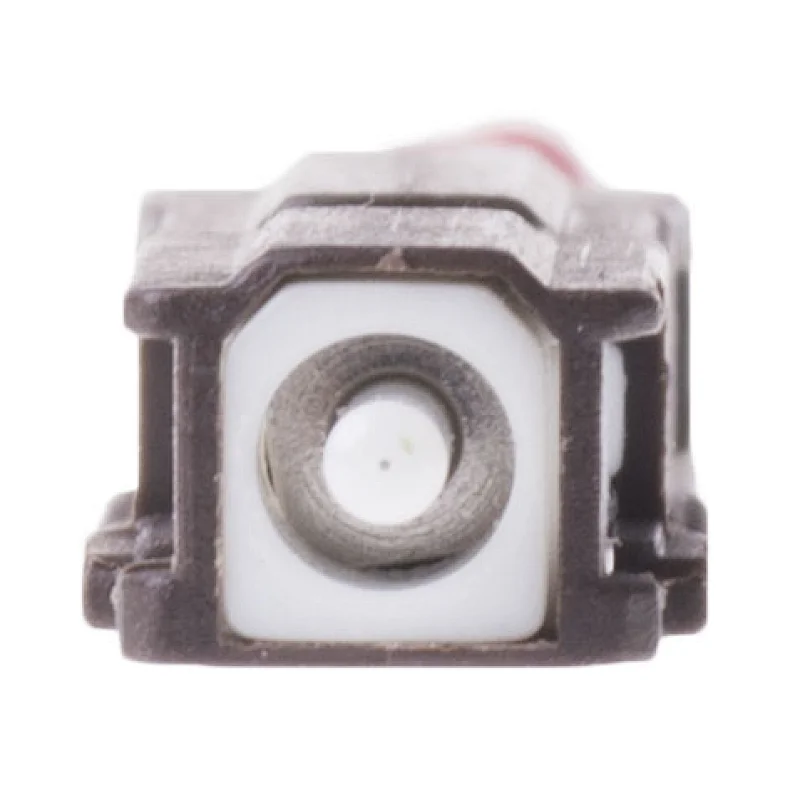

MU connector use high precision ferrules to provide a high level of performance. Producted and tested according to international standards and meet with RoHS.

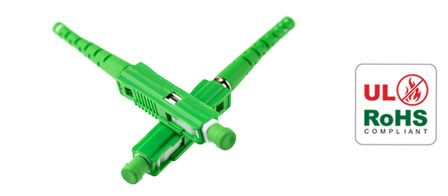

Compliance with RoHS

MU connector is individually and rigorously tested to ensure the high quality of the products and meet the international quality inspection system.

A variety of options

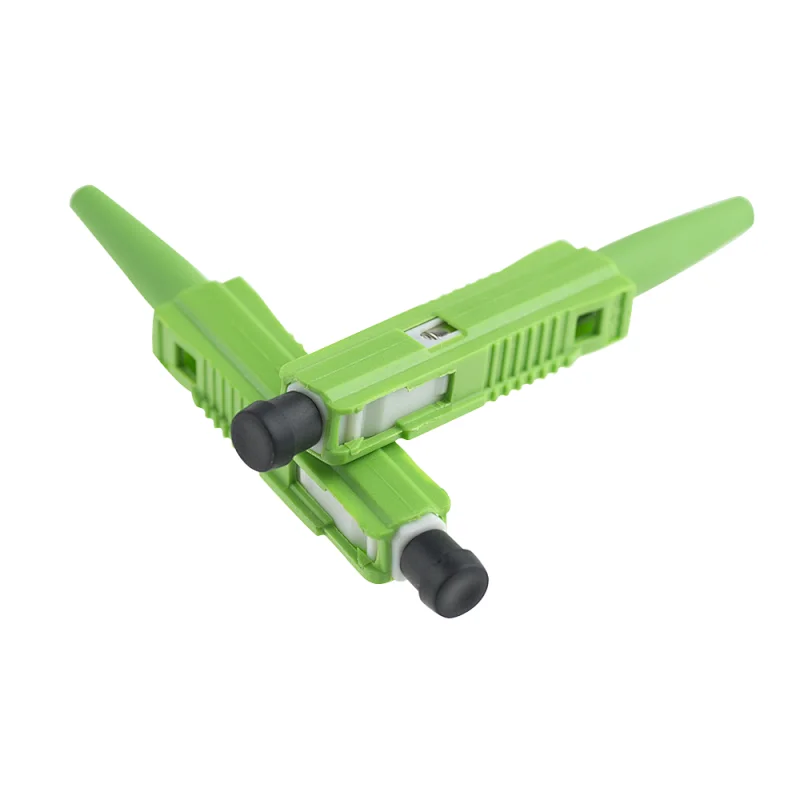

The MU connector has different ferrule Type and different Boot color options.

Mold	Mold	Cable	Housing Color	Boot Color
SM	Simplex	0.9mm	Green	Green
SM	Simplex	0.9mm	Beige	Beige
MM	Duplex	2.0mm	Blue	Blue
			Brown	Brown
			Brown	White

MU 0.9mm

MU 0.9mm

MU 2.0mm

Specification

Items	Single mode	Multi mode
Insertion Loss	≤0.3dB	≤0.3dB
Return Loss	≥50dB(UPC);≥60dB(APC)	≥30dB
Ceramic ferrule spec	125.5um concentricity deviations:＜1um	127um concentricity deviations:＜3um
Insert-pull test	500 times ＜0.3dB
Operation temperature	-40℃～+85℃
Suitable fiber	PC/APC(9/125um)	PC(50/125um,62.5/125um
