Model NO.
Multimode PLC splitter
Delivery:
FOB
Multimode Fiber Optic PLC splitter are Multimode Splitters with either 62.5µm or 50µm fiber core size.
Quantity:

HYC's multimode fiber optic splitter has excellent performance parameters:

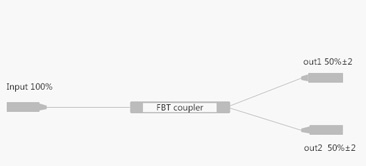

The multimode optical splitter has lower insertion loss than the PLC with the same number of branches; The FBT coupler has an optional split ratio of 1% to 50% for customers to choose. The tolerance of the split ratio is ±2% to ensure the accuracy of network monitoring.

SM FBT coupler_03.jpg

Low insertion loss compared to PLC product

SM FBT coupler.jpg

Split ratio±2%

The multimode optical splitter provided by HYC can support the harsh environment of -40 ° C ~ +85 ° C to ensure the stable transmission of signals.

SM FBT coupler_14.jpg

Small size, easy to install

The multimode optical splitter is packaged in a round steel tube and is small in size, making it easy to install in more applications.

SM FBT coupler_30.jpg

Multiple modes, Customizable

The Multimode optical splitter not only available in a variety of split modes and package types, but also can be customized according to customer requirements.

Multimode optical splitter ABS box type1_18.jpg

1×2 Size : Φ3.0×L54mm

Multimode optical splitter ABS box type1_18.jpg

2×2 Size : Φ3.0×L54mm

Multimode optical splitter ABS box type_25.jpg

ABS Size : L100×W80×H10mm

Multimode optical splitter ABS box type_20.jpg

ABS Size : L140×W115×H18mm

Multimode optical splitter ABS box type_27.jpg

ABS Size : L120×W80×H18mm

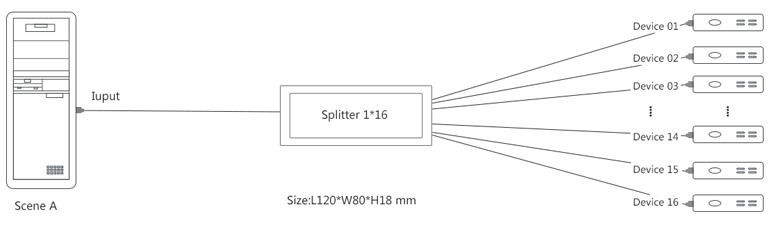

Network construction

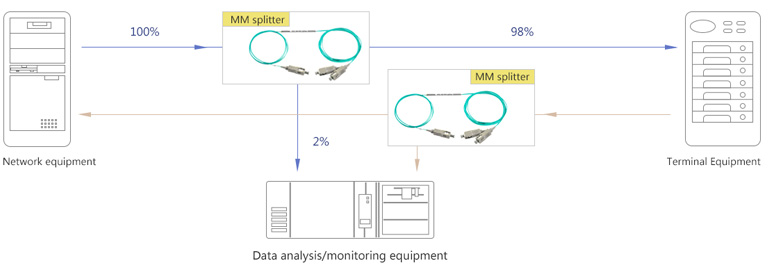

The multimode optical splitter has different split ratios and is suitable for real-time monitoring of optical network data or power; They can also be used to split optical signals in multimode devices.

● Analysis  /  Monitoring


● Optics splitter

Multimode optical splitter ABS box type_34.jpg

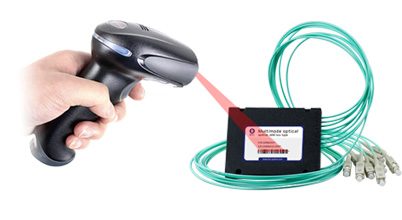

Systematic Traceability and Quality Assurance

HYC's independently developed production management system, each product has a complete electronic process to ensure the quality reliability and traceability of the device.

SM FBT coupler_38.jpg

Independently developed production
information management system

management system.jpg

Compliance with international standards

HYC's multimode optical splitter with RoHS compliant, meets the IEC 61300-2, TelcordiaGR-1209-CORE and GR-1221-CORE.

SM FBT coupler_30.jpg

  • RoHS
  • GR-1209-CORE
  • GR-1221-CORE
  • IEC 61300-2

Specification

ItemUnitMultimode optical splitter ABS box type
Operating Wavelengthnm850/1310
Fiber type/MO1/ MO2/ MO3/ MO4
Tube typemm0.9/2.0/3.0mm loose tube

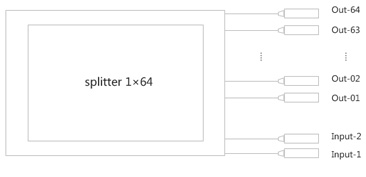

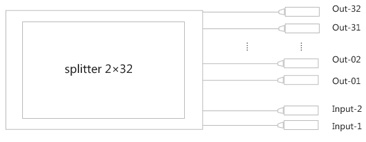

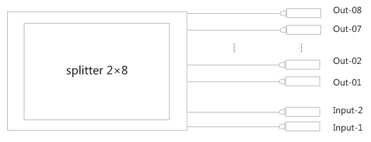

Channel type/1x22x21x42x41x82x81x162x161x322x321x642x64
Insertion lossdB≤3.7≤3.7≤7.5≤7.5≤11.5≤11.5≤15.0≤15.0≤18.5≤18.5≤22.2≤22.2
UniformitydB≤0.6≤0.6≤1.5≤1.5≤2.0≤2.0≤2.5≤2.5≤3.0≤3.0≤3.5≤3.5
PDLdB≤0.2≤0.3≤0.2≤0.3≤0.3≤0.3≤0.3≤0.3≤0.35≤0.5≤0.35≤0.5
TDLdB≤0.5
Return lossdB≥40
DirectionalitydB≥40
Working powermW≤500
Operating temperature-40~+85
Storage temperature-40~+85
Package size (LxWxH)mmφ3.0xL54/90x20x10100x80x10120x80x18140x115x18

Without Connector
