Model NO.
Terminator
Delivery:
FOB
With the rapid development of optical network era, In order to facilitate flexible and fast network deployment or expansion in the future, many operators usually reserve standby ports or extended ports on the existing network architecture. When these ports are not in use, optical fiber Terminators can be used to prevent optical signal reflection and avoid interference to the normal operation signals in the system. The Terminator provided by HYC is consistent with the shape of optical fiber connector, satisfies the normal optical fiber fast docking, has a variety of connectors optional, and is widely used in network nodes, data centers, terminal networks and other fields.
Quantity:

High optical performancee

The terminator provided by HYC meets the industrial working environment of -40~+85°C, so as to meet the application of different scenarios.

LC Push-Pull Uniboot Connector

High return loss, avoiding optical signal reflections and causing interference to the system

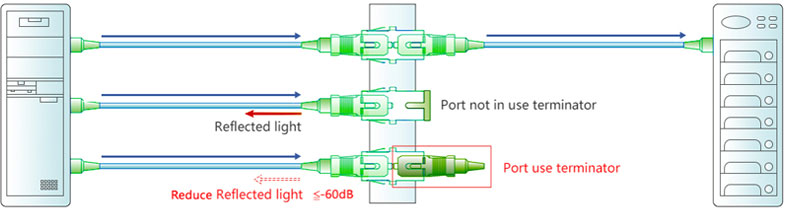

Without a terminator, there will be reflected light returning when the signal is output, causing interference to the system ; With terminator, the signal output is diverged by the fiber terminator, and Reduce reflected light back to interference the system.

LC Push-Pull Uniboot Connector

Ferrule type:


PC(Spherical),RL≥55dB


APC(8°),RL≥60dB

Conventional connector standard for easy normal docking

The terminator provided by HYC is consistent with the appearance standard of the fiber connector, which is convenient for docking. There are multiple colors and connector types.


FC terminations


MU/ST terminations


SC terminations


LC terminations

Compliance with international standards

HYC's fiber terminations are RoHS compliant and meet the IEC-61300-2-XX, IEC 61300-3-XX, IEC 61754-XX series of fiber optic connector standards.


Specification

​ ItemUnitFiber Terminator
Fiber modeSingle Mode (SM)
Operating wavelengthnm1260~1650
Core typePCAPC
Return LossdB≥55≥60
Maximum Power HandlingmW≤500
Connector typeSC、FC、LC、MU、ST
Operation temperature-40~+85
