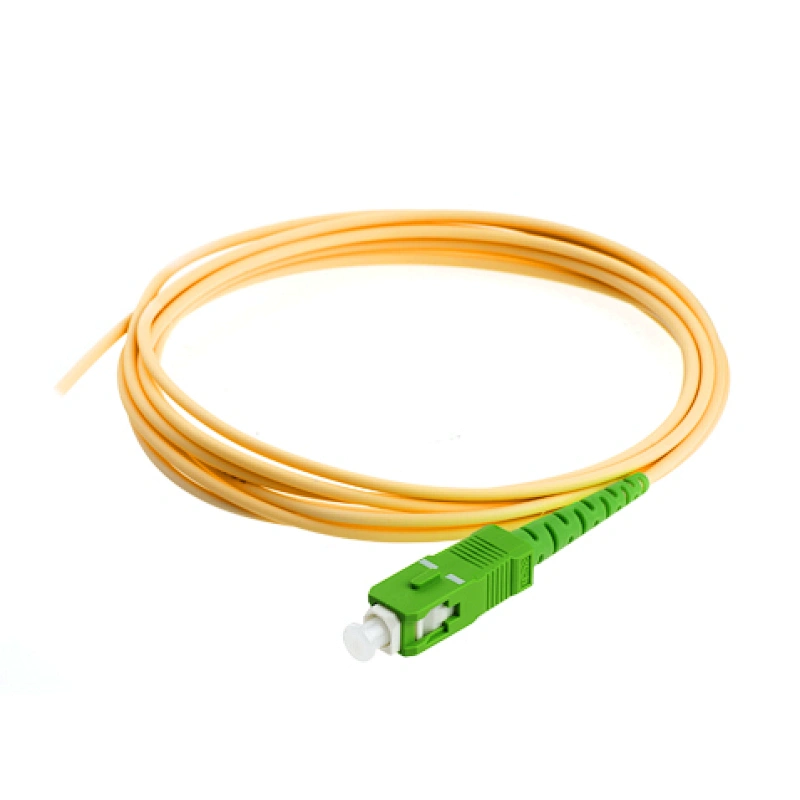

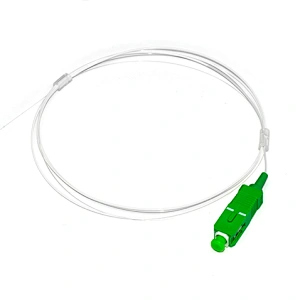

Patch cord pigtail, is in one end of a fiber optic cable plus fiber connector, the other end of the original state, to achieve optical network equipment and equipment, equipment and cable between the active connection, simple, convenient and fast; It is one of the essential passive products for optical network construction. HYC can provide all kinds of patch cord pigtail products; The transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization; It is widely used in optical network scenarios such as central office, FTTX and LAN etc.
Quantity:

High quality, 100% Tested

The patch cord pigtails provided by HYC are 100% tested, which meets product standards and meets customer needs.

  • MPO/MTP Patch Cord_03.jpg

    IL and return loss tested

  • MPO/MTP Patch Cord_07.jpg

    Connector 3D tested

  • Patch Cord Pigtail_07-04.jpg

    Ferrule end face inspected

High quality ferrules

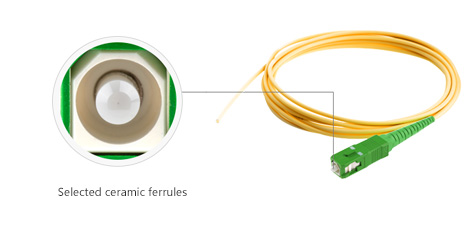

Patch cord pigtails selected ceramic ferrule, professional grinding technology, so that the end face of the optical fiber can be precisely connected; Low Insertion Loss≤0.15dB, Stable transmission and efficient connection.

Patch Cord Pigtail

Stable parameter performance

The patch cord pigtails provided by HYC meets the operating environment of-40~85 °C, More than 1,000 mating durability tests on average, stable performance and reliable quality.

Patch Cord Pigtail

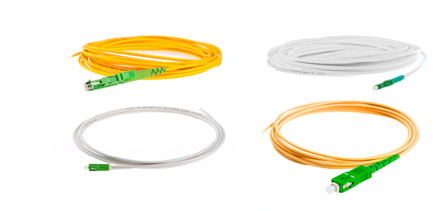

Multiple styles and can be customized

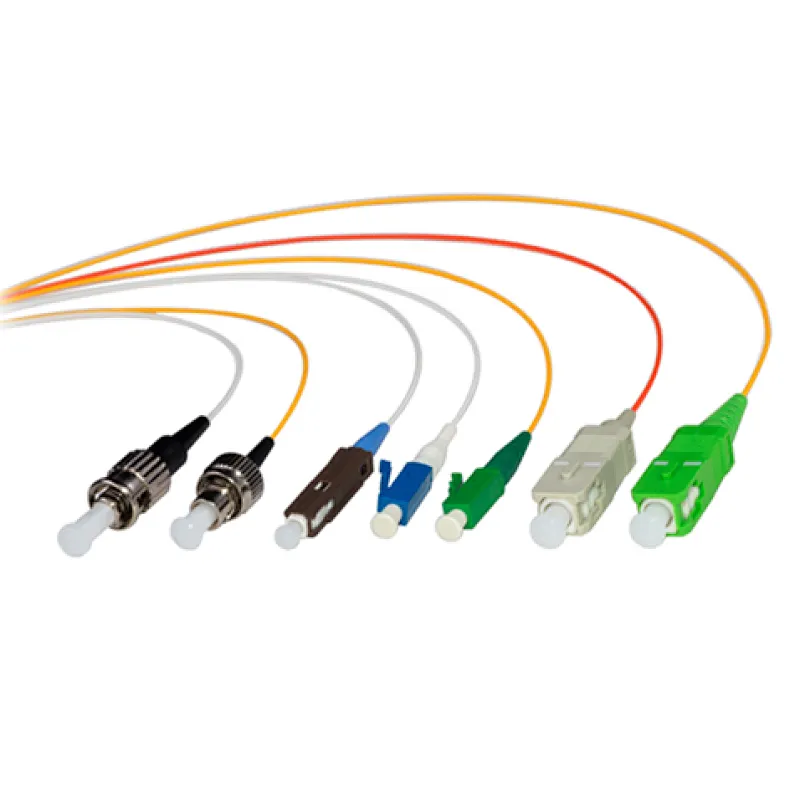

HYC provides a variety of patch cord pigtails, and can also be customized.

Number of coresCable diameterFiber typeFerrule typeCable colorInput connector
Single coreSMUPCWhiteLC
0.9mmYellowSC
1.6mmBlueFC
Double core2.0mmMMAPCRose redST
3.0mmAquaMU
...........

Examples:

  • Patch Cord Pigtail.jpg

    SM Simplex ST/PC

  • Patch Cord Pigtail-08.jpg

    SM Simplex LC/PC

  • Patch Cord Pigtail-09.jpg

    SM Simplex MU/PC

  • Patch Cord Pigtail-08.jpg

    SM Simplex FC/PC

  • Patch Cord Pigtail-09.jpg

    MM Simplex SC/PC

Applications

Example: patch cord pigtails are suitable for scenarios such as ODF, high-density module boxes, and FTTH boxes.

  • Patch Cord Pigtail.jpg

    ODF

  • Patch Cord Pigtail-08.jpg

    HD Module box

  • Patch Cord Pigtail-09.jpg

    FTTH Terminal box

Compliance with international standards

The patch cord pigtails provided by HYC can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC61754, IEC 61753-1, IEC61300-3-4 and other standards.

Patch Cord Pigtail_26.jpg
  • GR 326 or IEC 61300-2
  • RoHS
  • IEC 61754
  • IEC 61753-1

Specification

ItemsRandom Mating according to IEC 61300-3-34Against Master Connector according to IEC 61300-3-4
Grade AGrade BGrade CAverageMax
AverageMax (97%)AverageMax (97%)AverageMax (97%)
Insertion Loss≤0.08dB≤0.15dB≤0.12dB≤0.25dB≤0.25dB≤0.5dB≤0.25dB≤0.30dB
Return Loss≥50dB(PC),≥50dB(UPC);≥60dB(APC)≥30dB(PC)
Durability500times
Operation temperature-40℃~+85℃
Fiber TypeOS1/ OS2OM1/OM2/OM3/OM4/OM5
