Model NO.

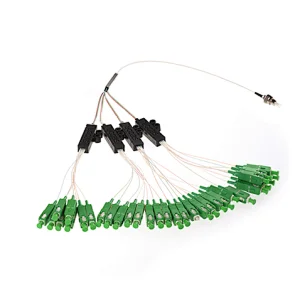

PLC splitter MINI fan-out
Delivery:
FOB
PLC splitter with fan-out is mainly used for 0.9mm optical fiber.
Quantity:

HYC's PLC Splitter Mini Fan-out module has excellent performance parameters

The PLC splitter is insensitive to wavelength and has full-band signal transmission from 1260 to 1650 nm.

PLC optical splitter MINI module_03.jpg

PLC Device
Without water peak, 1260~1650nm full-band work

N-1x2 PLC optical splitter device_05.jpg

FBT (Fused) Device
There are water peaks, can't working in full band

The PLC splitter has lower channel uniformity, ensuring that each channel can be reach almost the same when distributing optical power; Lower PDL values ensure stability during signal transmission.

PLC optical splitter MINI module_09.jpg

Typical uniformity≤1.0dB

PLC optical splitter MINI module_10.jpg

Typical PDL≤0.3dB

The PLC splitter provided by HYC can support the harsh environment of -40 ° C ~ +85 ° C to ensure the stable transmission of signals.

PLC optical splitter MINI module_14.jpg

High quality raw materials

To ensure the stability and reliability of the PLC splitter, HYC is extremely strict in the selection of the raw materials.

PLC optical splitter MINI module_30.jpg

Multiple modes, Customizable

The PLC optical splitter ABS box type not only available in a variety of split modes and package types, but also can be customized according to customer requirements.

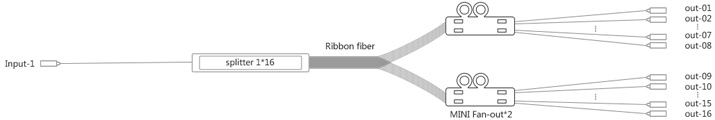

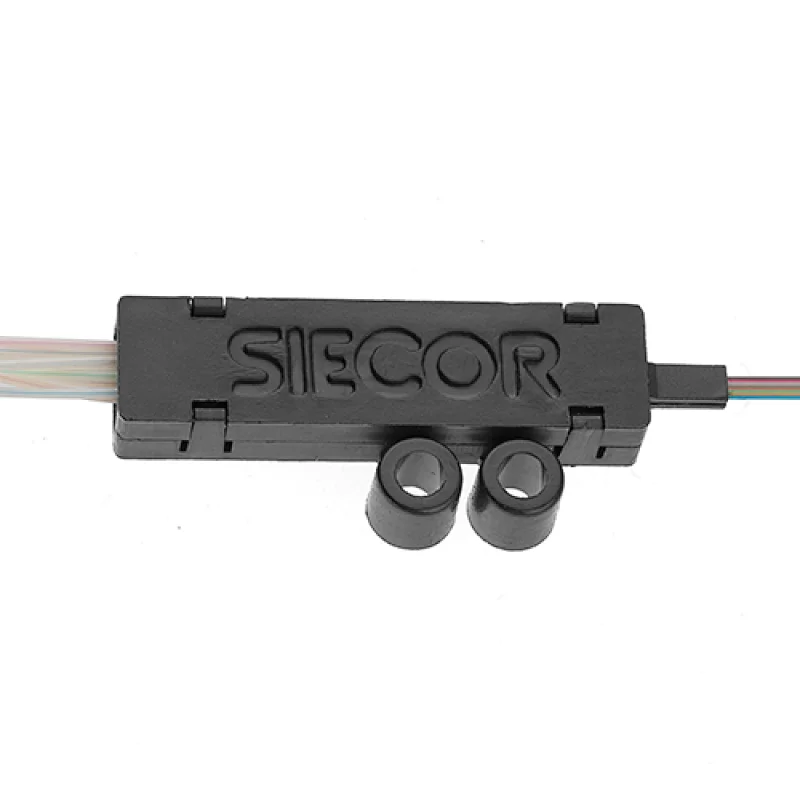

size : L45*W5*H4 mm


size : L60*W7*H4 mm

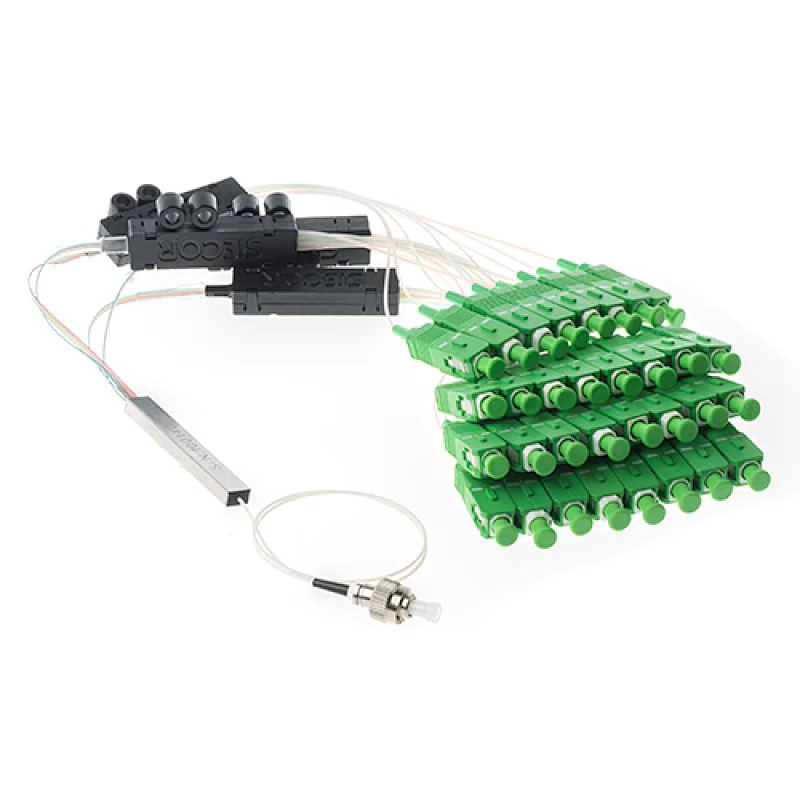

PLC光分路器MINI分支器_31.jpgConnector type and color can be customized

0.9mm loose tube

Systematic Traceability and Quality Assurance

HYC's independently developed production management system, each product has a complete electronic process to ensure the quality reliability and traceability of the device.

PLC optical splitter MINI module_38.jpg

Independently developed production
information management system

management system.jpg

Compliance with international standards

HYC's PLC optical splitter with RoHS compliant, meets the IEC 61300-2, TelcordiaGR-1209-CORE and GR-1221-CORE.

PLC optical splitter MINI module_30.jpg

  • RoHS
  • TelcordiaGR-1209-CORE
  • GR-1221-CORE
  • IEC 61300-2

Specification

ItemUnitPLC optical splitter MINI fan-out device
Operating Wavelengthnm1260~1650
Fiber typeG652D/G657A1/G657A2
Tube typemmMINI Fan-out 0.9mm loose tube
Channel type1x22x21x42x41x82x81x162x161x322x321x642x64
Insertion lossdB≤4.0≤4.2≤7.2≤7.4≤10.5≤10.8≤13.7≤14.0≤17.0≤17.5≤20.6≤21.0
UniformitydB≤0.4≤1.0≤0.6≤1.5≤0.8≤1.5≤1.2≤2.0≤1.5≤2.0≤2.0≤2.5
PDLdB≤0.2≤0.3≤0.2≤0.3≤0.2≤0.3≤0.3≤0.3≤0.3≤0.3≤0.35≤0.5
TDLdB≤0.5
Return lossdB≥55
DirectionalitydB≥55
Working powermW≤500
Operating temperature-40~+85
Storage temperature-40~+85
Package size (LxWxH)mm40x4x450x4x440x4x450x4x445x5x450x4x450x7x460x7x460x12x4

Without Connector
