Model NO.
MEMS OSW
Delivery:
FOB

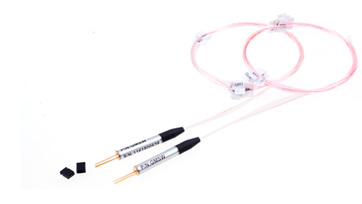

HYC can provide a series of MEMS optical switches in 1×N configuration, such as 1×2, 1×4, 1×8, 1×16, 1×32, 1×48, etc. Customization is available.
Quantity:

Low insertion loss and good repeatability

MEMS optical switches have excellent parameter performance, and the number of channel switching can exceed 1 billion times;

LC Internal Shutter Adapter_03.jpg

Small size and multiple channels

MEMS optical switch device has small size and many channels, which is good for the scene of optical network with high integration.

LC Internal Shutter Adapter_07.jpg

Examples of application scenarios


Compliance with international standards

The MEMS optical switch provided by HYC can meet GR-1209-CORE, GR-1221-CORE, GR-1073-CORE and RoHS standards.

  • GR-1209-CORE
  • RoHS
  • GR-1221-CORE
  • GR-1073-CORE

Specification

ParametersUnitValueNotes
Wavelengthnm1550
OSW ChannelsCH2~24≤24
Insertion LossdB≤1.0@CWL,23°C
Return LossdB≥50
RepeatabilitydB≤0.1
CrosstalkdB≥50
Polarization Dependence LossdB≤0.15
Wavelength Dependence LossdB≤0.3@CWL±20nm, 23°C
Wavelength Dependence LossdB≤0.3
Operation Temperature°C-5~70
Storage Temperature°C-40~85
Switch Timems≤30
Durabilitycycle≥1x10^9
Maximum optical PowermW≤500
Switch Mode/Non-latching
Control VoltageV≤60
Dimensionmmφ5.5×42
Fiber Length(All Ports)m≥1customer specify
Fiber Type/SMF-28e, 250um G657A3(Corning ZBL)customer specify
