Model NO.
N-1x2 PLC splitter
Delivery:
FOB
N-1x2 Long Main Optical Cable Splitter is an optical power equalization product based on quartz substrate material and planar optical waveguide technology.
Quantity:

HYC's PLC splitter module has excellent performance parameters

Theoptical cable splitter is insensitive to wavelength and has full-band signal transmission from 1260 to 1650 nm.

PLC optical splitter MINI module_03.jpg

PLC Device
Without water peak, 1260~1650nm full-band work

N-1x2 PLC optical splitter device_05.jpg

FBT (Fused) Device
There are water peaks, can't working in full band

The PLC splitter has lower channel uniformity, ensuring that each channel can be reach almost the same when distributing optical power; Lower PDL values ensure stability during signal transmission.

PLC optical splitter MINI module_09.jpg

Typical uniformity≤1.0dB

PLC optical splitter MINI module_10.jpg

Typical PDL≤0.3dB

The PLC splitter provided by HYC can support the harsh environment of -40 ° C ~ +85 ° C to ensure the stable transmission of signals.

PLC optical splitter MINI module_14.jpg

High quality raw materials

To ensure the stability and reliability of the PLC splitter, HYC is extremely strict in the selection of the raw materials.

PLC optical splitter MINI module_30.jpg

Multiple modes, Customizable

N-1x2 PLC optical splitter ABS type – Long main optical cable type not only available in a variety of split modes and package types, but also can be customized according to customer requirements.

PLC optical splitter MINI module_25.jpg

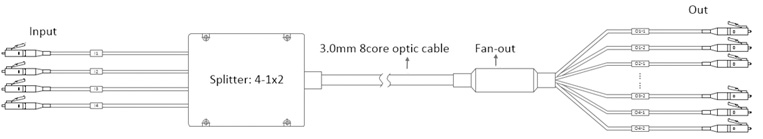

Size : L120*W80*H18 mm

PLC optical splitter MINI module_31.jpg

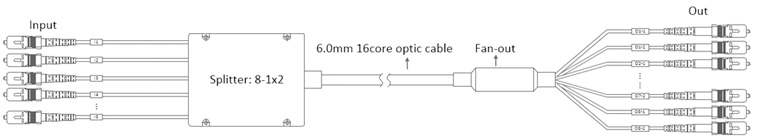

Size : L120*W80*H18 mm

Network Construction

N-1x2PLC optical splitter can realize multiple 1x2 splitters working on one chip without mutual interference and high density integration. It is suitable for some special scene applications of narrow space in passive optical network (PON) system.

PLC optical splitter MINI module_30.jpg

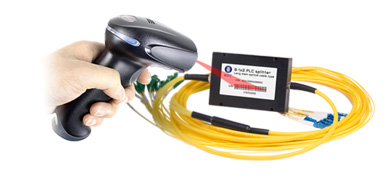

Systematic Traceability and Quality Assurance

HYC's independently developed production management system, each product has a complete electronic process to ensure the quality reliability and traceability of the device.

PLC optical splitter MINI module_38.jpg

Independently developed production
information management system

management system.jpg

Compliance with international standards

HYC's PLC optical splitter with RoHS compliant, meets the IEC 61300-2, TelcordiaGR-1209-CORE and GR-1221-CORE.

PLC optical splitter MINI module_30.jpg

  • RoHS
  • TelcordiaGR-1209-CORE
  • GR-1221-CORE
  • IEC 61300-2

Specification

​​ ItemUnitN-1x2 PLC optical splitter ABS type
Operating Wavelengthnm1260~1650
Fiber typeG652D/G657A1/G657A2
Tube typemm0.9/2.0/3.0 loose tube and 3.0/6.0 multi-core optical cable
Channel type4-1x26-1x28-1x2
Insertion lossdB≤4.2
UniformitydB≤0.6
PDLdB≤0.2
TDLdB≤0.5
Return lossdBPC≥50,APC≥55
DirectionalitydB≥55
Working powermW≤500
Operating temperature-40~+85
Storage temperature-40~+85
Package size (LxWxH)mm120x80x18

Without Connector
