Model NO.
SC metal Adapter
Delivery:
FOB

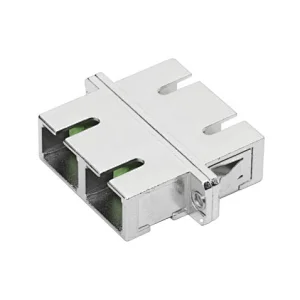

Optical fiber adapter is a device that is connected between fiber optic connectors to minimize the loss to the optical link so that the optical energy output from the transmitting fiber can be maximally coupled into the receiving fiber; The SC metal adapter provided by HYC has the advantages of convenient installation, low insertion loss, good interchangeability, high and low temperature resistance, and is widely used in telecom networks, CATV, FTTX etc..
Quantity:

Standard size, Easy installation

The SC metal adapter is a standard square structure, which is easy and quick to install.

SC metal Adapter

Selected ceramic sleeve

High-precision ceramic sleeves are selected to achieve high-precision alignment of the connectors to ensure long-term stable mechanical and optical performance.

SC metal Adapter

Stable parameter performance

The optical fiber adapter provided by HYC meets the working environment of -40~85 °C, with an average of more than 500~1000 insertion and removal tests, with stable performance and reliable quality.

SC metal Adapter

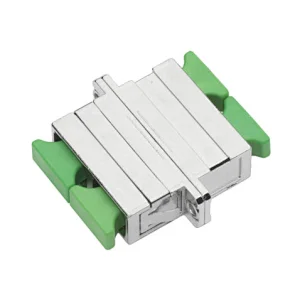

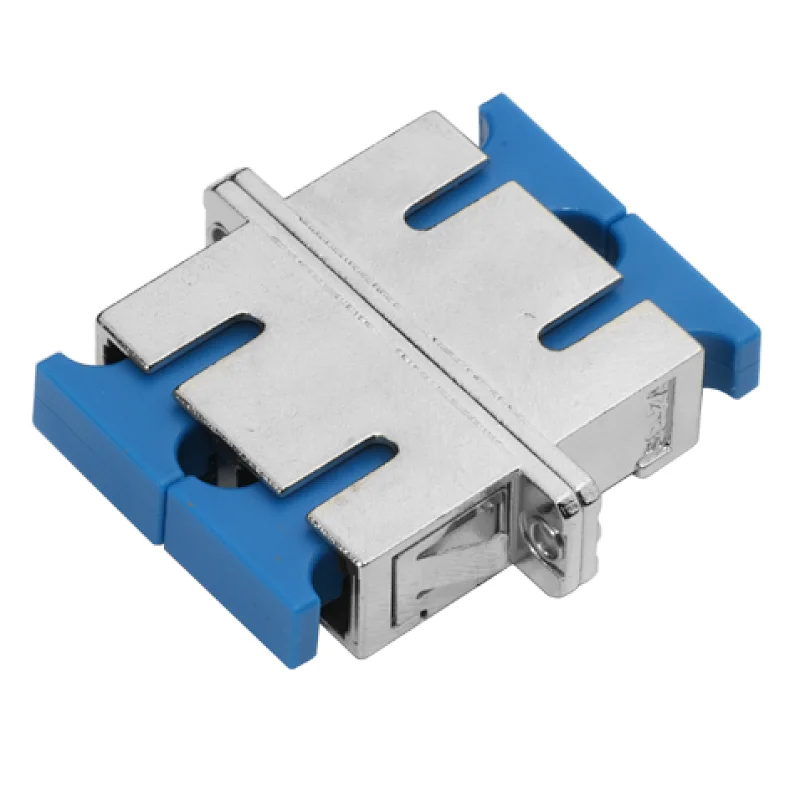

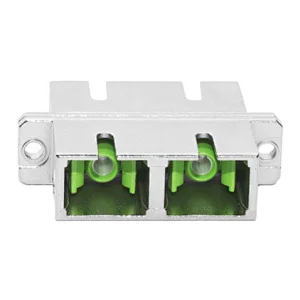

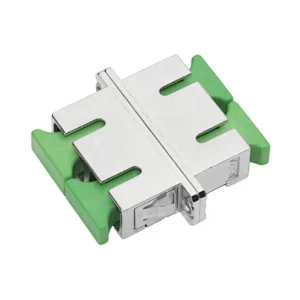

Multiple styles available

SC metal adapter are available in a variety of options.

TypeFlangeDust capCard slot color
SC metal Adapter _13.jpg

    Simplex

SC metal Adapter _13-07.jpg

       With

SC metal Adapter _16.jpg

Notched flat cap

SC metal Adapter _21-09.jpg

Green


Duplex

SC metal Adapter _30.jpg

Without

SC metal Adapter _21.jpg

T-shaped gourd cap

SC metal Adapter _16-05.jpg

Blue

Compliance with international standards

The SC metal adapter provided by HYC can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC 61754-4, UL 94-V0 and other standards.

SC metal Adapter
  • GR 326 or IEC 61300-2
  • RoHS
  • UL 94-V0
  • IEC 61754-4

Specification

ItemsInsertion LossMechanical resistanceRepeatabilityOperating Temperature
SM/PC≤0.2dB200-600g<0.2dB(500times)-40℃~+85℃
SM/APC≤0.2dB200-600g<0.2dB(500times)-40℃~+85℃
MM/PC≤0.2dB200-600g<0.2dB(500times)-40℃~+85℃
