Model NO.:
SC outer shutter adapter
Delivery:
FOB
The SC outer shutteradapter provided by HYC has the advantages of convenientinstallation, low insertion loss, good interchangeability, high andlow temperature resistance, and is widely used in telecomnetworks, CATV, FTTX etc..
Quantity:

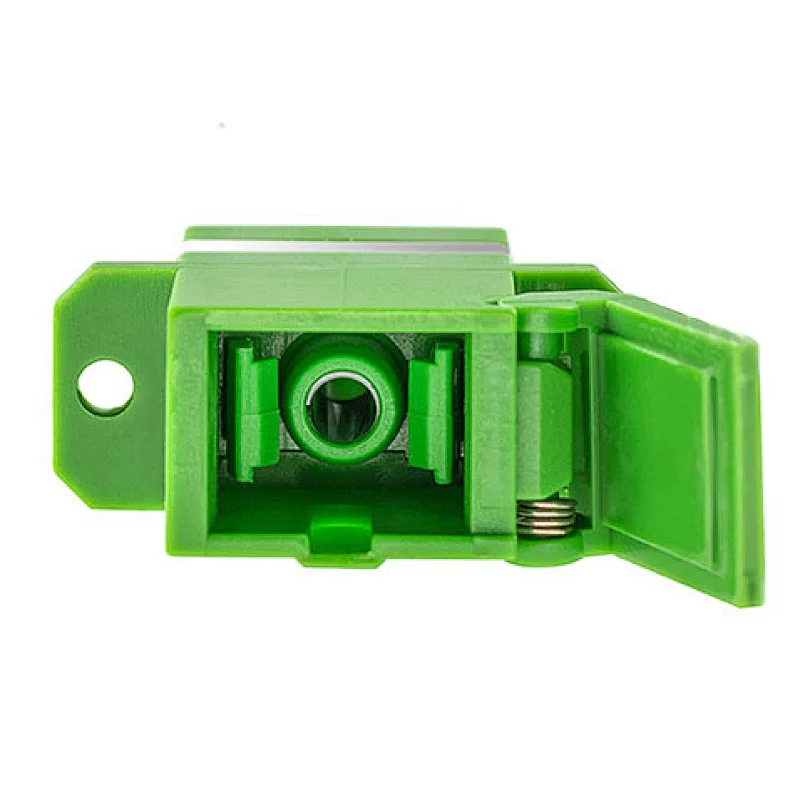

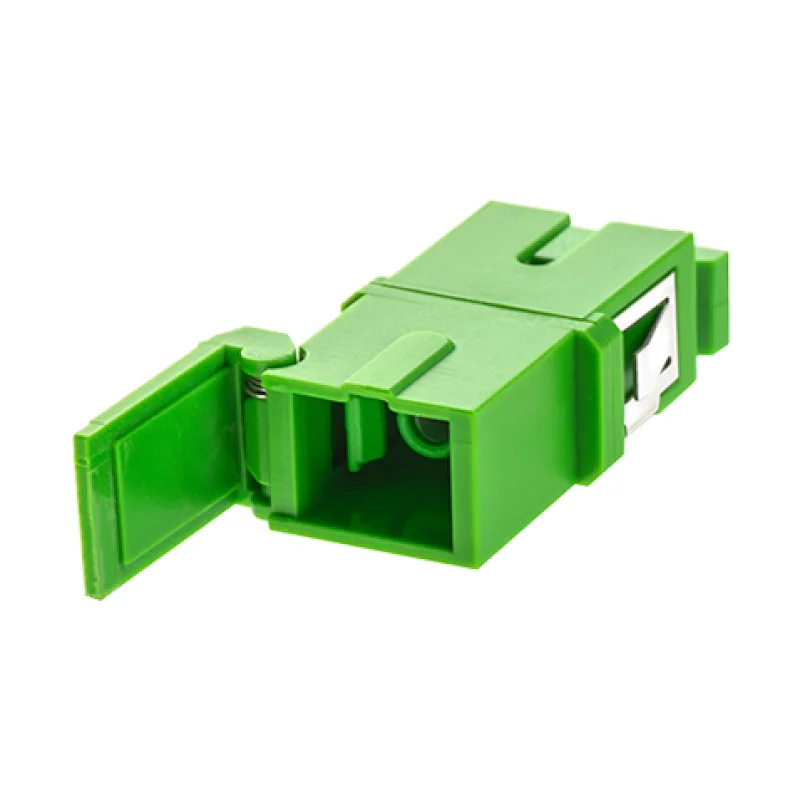

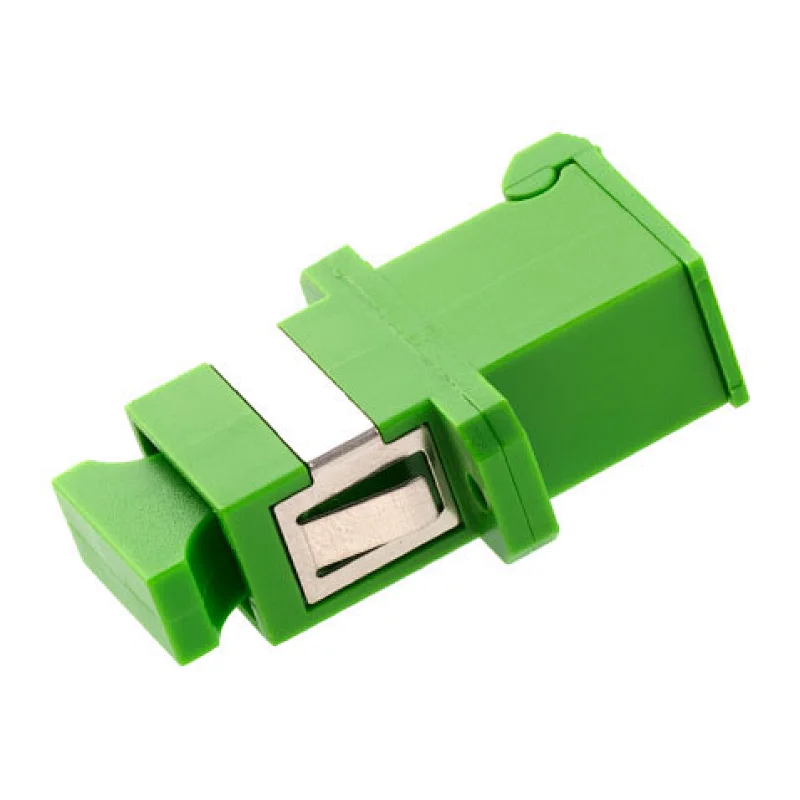

Outer shutter

The SC adapter comes with outer shutter to prevent harmful laser light from entering the eye and to prevent dust and other contaminants from entering the adapter.

Standard size, Easy installation

The SC adapter is a standard square structure, which is easy and quick to install.

SC outer shutter adapter

Selected ceramic sleeve

High-precision ceramic sleeves are selected to achieve high-precision alignment of the connectors to ensure long-term stable mechanical and optical performance.

SC outer shutter adapter

Stable parameter performance

The optical fiber adapter provided by HYC meets the working environment of -40~85 °C, with an average of more than 500~1000 insertion and removal tests, with stable performance and reliable quality.

SC outer shutter adapter

Multiple styles available

SC outer shutter adapter are available in a variety of options.

Opening methodFlangeDust capColor
SC outer shutter adapter_13.jpg

Front open

SC outer shutter adapter_13-07.jpg

       With

SC outer shutter adapter_16.jpg

Notched flat cap

Green
Aqua
SC outer shutter adapter_26.jpg

outer side

SC outer shutter adapter_27.jpg

Without

SC outer shutter adapter_21.jpg

T-shaped gourd cap

Beige
Blue

Compliance with international standards

The SC outer shutter adapter provided by HYC can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC 61754-4, UL 94-V0 and other standards.

SC outer shutter adapter
  • GR 326 or IEC 61300-2
  • RoHS
  • UL 94-V0
  • IEC 61754-4

Specification

ItemsInsertion LossMechanical resistanceRepeatabilityOperating Temperature
SM/PC≤0.2dB200-600g<0.2dB(500times)-40℃~+85℃
SM/APC≤0.2dB200-600g<0.2dB(500times)-40℃~+85℃
MM/PC≤0.2dB200-600g<0.2dB(500times)-40℃~+85℃
