ST Adapter

Model NO.: ST Adapter
Delivery:: FOB
Minimum order quantity:: 1

Optical fiber adapter is a device that is connected between fiber optic connectors to minimize the loss to the optical link so that the optical energy output from the transmitting fiber can be maximally coupled into the receiving fiber; The ST adapter provided by HYC has the advantages of convenient installation, low insertion loss, good interchangeability, high and low temperature resistance, and is widely used in telecom networks, CATV, FTTX etc..

Quantity:

Product Description

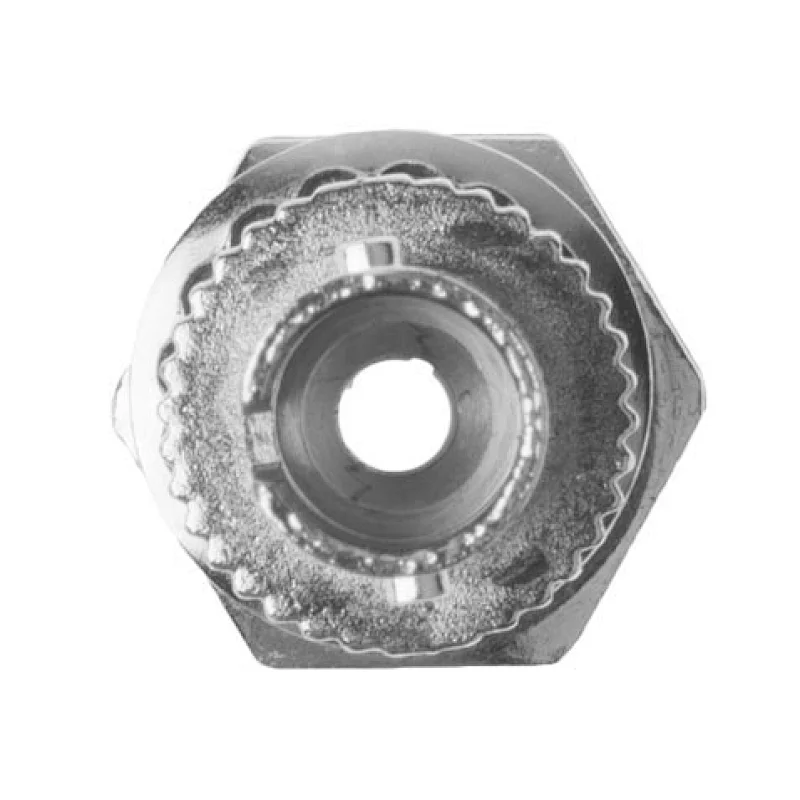

Metal structure, Firm installation

The ST adapter adopts a metal frame sleeve, which is corrosion-resistant and highly reliable; the screw-tightening method ensures reliable installation.

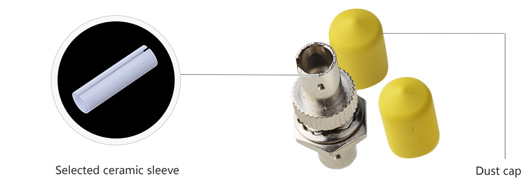

Selected ceramic sleeve

High-precision ceramic sleeves are selected to achieve high-precision alignment of the connectors to ensure long-term stable mechanical and optical performance.

Stable parameter performance

The optical fiber adapter provided by HYC meets the working environment of -40~85 °C, with an average of more than 500~1000 insertion and removal tests, with stable performance and reliable quality.

Multiple styles available

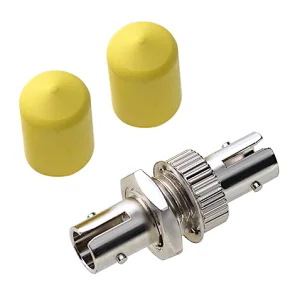

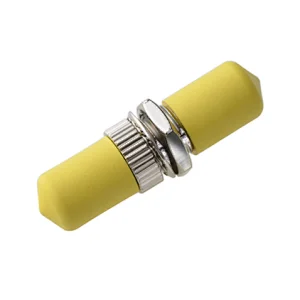

ST adapter can be matched with a variety of color dust caps.

Compliance with international standards

The ST adapter provided by HYC can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC 61754-2 and other standards.

GR 326 or IEC 61300-2RoHSIEC 61754-2

Specification

Items	Insertion Loss	Mechanical resistance	Repeatability	Operating Temperature
SM/PC	≤0.2dB	200-600g	＜0.2dB(500times)	-40℃～+85℃
SM/APC	≤0.2dB	200-600g	＜0.2dB(500times)	-40℃～+85℃
MM/PC	≤0.2dB	200-600g	＜0.2dB(500times)	-40℃～+85℃
